SMT Board To Board Connector 0.4mm Pitch Compatible AXK860145 / AXK760145

SMT Board To Board Connector 0.4mm Pitch Compatible AXK860145 / AXK760145
SMT Board To Board Connector 0.4mm Pitch Compatible AXK860145 / AXK760145

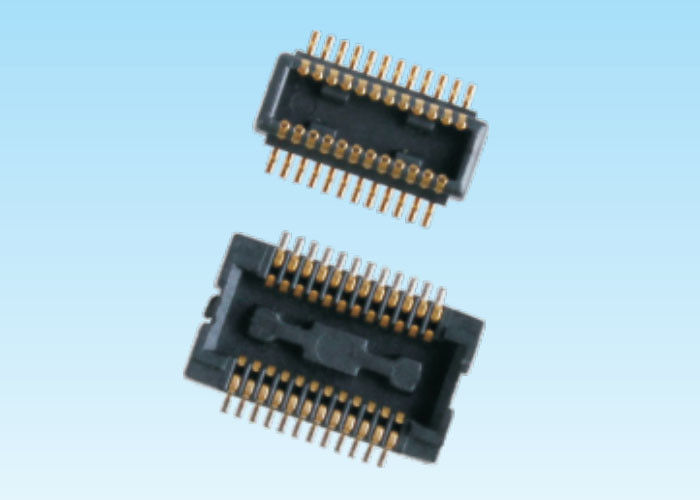

Large Image :  SMT Board To Board Connector 0.4mm Pitch Compatible AXK860145 / AXK760145

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: DL50010101

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: Tray
Delivery Time: 5-10 days
Payment Terms: T/T, L/C
Supply Ability: 1000K/month
Detailed Product Description
Product Status: Active Type: BTB Connector
Gender: Male And Famle Pin: 20pin/24/30/40/50/60/70
Voltage Rating: 50V AC OP Temperature: -55° ~ +85°
High Light:

board to board power connectors

,

board to board header connector

SMT Board To Board Connector compatible AXK860145/ AXK760145 ,0.4mm pitch





Product Description :

Product name: DALEE BTB Connector
Secification: Panasonic original connector
Type : BTB
Gender: Female and male
Certification: ISO9001,UL,ROHS and the latest REACH
Male Pin: 20/24/30/40/50/60/70 Pin
Female Pin : 24/30/40/50/54/60/70 Pin
Rated voltage: 60 V AC/DC
Rated Current: 0.3 A / contact (max.5A at total contact )
Contact Resistance: 90mΩ MAX
Insulation Resistance: 1000MΩ/MIN
Breakdown voltage: 150 VAC for 1 min
Ambient temperature: -55°C ~ +85°C
Compose removal force: Min 0.165N/contacts X contacts
Post holding force: Min 0.49N/contacts
Insertion and removal life: 50 times



Board to Board connectors Material:



Molded portion:LCP resin(UL94V-0)
Contact and post :Copper alloy
Surface treatment:gold 1u‘’/2u''/3u''




BTB male connectors drawing :



SMT Board To Board Connector 0.4mm Pitch Compatible AXK860145 / AXK760145 0

SMT Board To Board Connector 0.4mm Pitch Compatible AXK860145 / AXK760145 1



BTB Female connectors drawing :

 SMT Board To Board Connector 0.4mm Pitch Compatible AXK860145 / AXK760145 2

SMT Board To Board Connector 0.4mm Pitch Compatible AXK860145 / AXK760145 3





Product Application:



1) Smart Lock.

2) Motion DV.

3) Medical Equipment.

4) Automotive Filed

5) Military Industry

6) mobile phone





Competitive Advantages:



1, More than 10 year's experience in the electronic business.

2, Strong R&D team specialized in connector and model design.

3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification.

4, One stop service of connectors with high quality and best service after sales .

5, Strict shipping ,100% tested before the delivery

6, we also can provide the customized products as the request of clients

7, samples can be provided for free in 1-3 days

8, fast delivery,purchasing orders shipped in 3-10 days



Payment term and delivery:



1. MOQ:1000pcs.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

6. Delivery Time: 3-15 working days after order confirmed and the payment received.

7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.

8. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton.
