0.5mm Pitch H1.5mm Board To Board Connector Female Type Single Contact

Certification
China Dalee Electronic Co., Ltd. certification
China Dalee Electronic Co., Ltd. certification
We have cooperated with Dalee company about two years. They are professional with excellent quality and best service. Thank you very much.

—— Matthew Cornish

Better price and high quality, this helped me a lot. Timely booking, satisfactory service and full support. I am glad to work with you.

—— Daniel Reisfeld

Dalee company have provided kinds of connectors with high quality and timely delivery. I like them very much, and they have became our main connector supplier in China.

—— Mike Mcmaster

I'm Online Chat Now

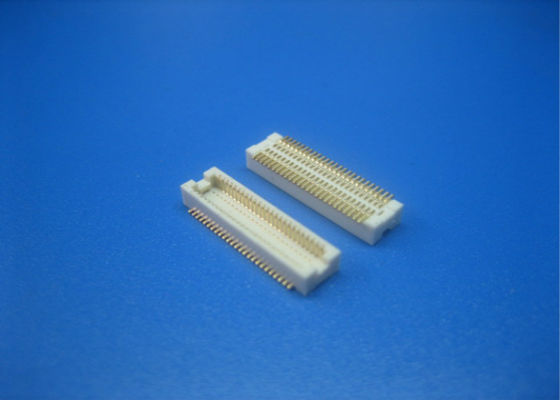

0.5mm Pitch H1.5mm Board To Board Connector Female Type Single Contact

0.5mm Pitch H1.5mm Board To Board Connector Female Type Single Contact
0.5mm Pitch H1.5mm Board To Board Connector Female Type Single Contact

Large Image :  0.5mm Pitch H1.5mm Board To Board Connector Female Type Single Contact

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: DL50010103

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: Loose in bag or box, Tray, Tube
Delivery Time: 5-15 working days
Payment Terms: T/T, L/C
Supply Ability: 1000K/month
Detailed Product Description
Product Family: Board To Board Connector Product Status: Active
Type: Single Slots Gender: Female
PCB Mount Type: Surface Mount Electrical Rating: AC/DC
Insulation Resistance: 500M Ω OP Temperature: -25° ~ +85°
High Light:

board to board power connectors

,

board to board header connector

0.5mmPitch H=1.5mm Female Type Single Contact Board To Board Connector





Product Description :



Product name: DALEE connector
Secification: 0.5mm Pitch-1.5mm High
Type: Single Contact
Certification: ISO9001,UL,ROHS and the latest REACH
Operating voltage: 10V AC(RMS)/DC
Withstand Volt : 200 V AC/minute
Operating Temprature: -25 ℃ - +80 ℃
Insulation Resistance 500M ohms min. at 250VDC
Dielectric withstandig voltae: 500VAC/1minute
Contact Resistance: 1000m ohms max
Contact material: Phosphor bronze/gold plated
Housing: LCP, UL94V-0, white





DRAWING



0.5mm Pitch H1.5mm Board To Board Connector Female Type Single Contact 0







Competitive Advantages:



1,11 year's experience in the electronic business

2, Strong R&D team specialized in connector and model design

3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification

4, Strict shipping ,100% tested before delivery

5, Fast delivery,purchasing orders shipped in 3-10 days

6, Samples can be provided for free in 1-3 days





Product Application:



1, Cusumer Electronics.

2, Communications Industry.

3, Medical Equipment.

4, Automotive Filed

5, Military Industry

6, Data Module





Payment term and delivery



1. MOQ:1000pcs.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

6. Delivery Time: 3-15 working days after order confirmed and the payment received.

7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.

8. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton
