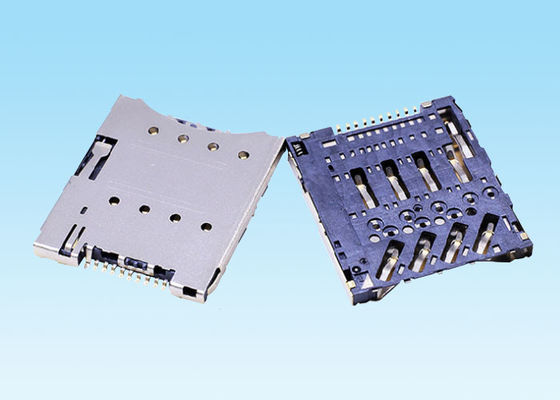

Push Type SIM Card Connector 1.0A Current Rating With CD Detect Foot 1.28mm High

Push Type SIM Card Connector 1.0A Current Rating With CD Detect Foot 1.28mm High
Push Type SIM Card Connector 1.0A Current Rating With CD Detect Foot 1.28mm High

Large Image :  Push Type SIM Card Connector 1.0A Current Rating With CD Detect Foot 1.28mm High

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: DL50010709

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: PE bag, Tube, Volume
Delivery Time: 5-10 working days
Payment Terms: T/T, L/C
Supply Ability: 5000000/month
Detailed Product Description
MPQ: 1000 PCS High: 1.28mm
Type: Push Operating Temprature: -20 ℃ - +85 ℃
Contact Resistance: 60 Milliohms Max Durability: 500 Cycles
High Light:

micro sim connector

,

sim card socket connector

Push Type SIM Card Connector With CD Detect Foot 1.28mm High Pin=8 LCP Plastic for Communication Equipments





Product Details:



Product name: DALEE Connector
Secification: 1.28mm High
Type:  Push
Certification: ISO9001,UL,ROHS and the latest REACH
Contact Resistance: 60 Milliohms max
Insulation Resistance 1000 Megohms min
Voltage Rating: 50 V
Current Rating: 1.0A
Operating Temprature: -20 ℃ - +85 ℃
Durability: 500 cycles
Housing: Thermoplastic , UL94- V0





Product Application: Our connectors are widely applied to cusumer electronics,military industry ,cummunications industry , automotive filed, medical equipment , data module and so on .

Push Type SIM Card Connector 1.0A Current Rating With CD Detect Foot 1.28mm High 0





Payment term and delivery



1. MOQ:500pcs. for some products we do not have the MOQ.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

6. Delivery Time: 3-15 working days after order confirmed and the payment received.

7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.

8. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton.

Push Type SIM Card Connector 1.0A Current Rating With CD Detect Foot 1.28mm High 1





Dalee Main Export Markets : Asia,Africa,South and North America and Europe.
