Home ProductsUSB Type C Connector

High Speed USB Charging Cable USB 3.0 Type C Connector 6P 3.0A Current Rating

Certification
China Dalee Electronic Co., Ltd. certification
China Dalee Electronic Co., Ltd. certification
We have cooperated with Dalee company about two years. They are professional with excellent quality and best service. Thank you very much.

—— Matthew Cornish

Better price and high quality, this helped me a lot. Timely booking, satisfactory service and full support. I am glad to work with you.

—— Daniel Reisfeld

Dalee company have provided kinds of connectors with high quality and timely delivery. I like them very much, and they have became our main connector supplier in China.

—— Mike Mcmaster

I'm Online Chat Now

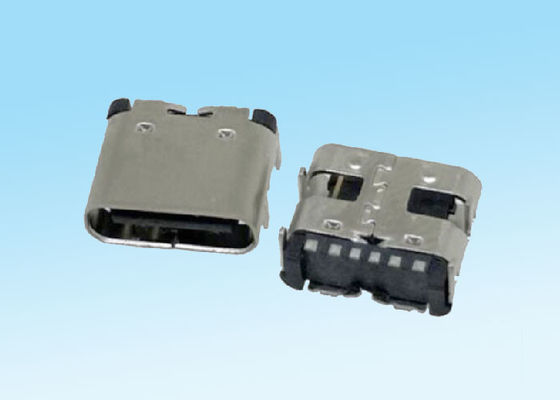

High Speed USB Charging Cable USB 3.0 Type C Connector 6P 3.0A Current Rating

High Speed USB Charging Cable USB 3.0 Type C Connector 6P 3.0A Current Rating
High Speed USB Charging Cable USB 3.0 Type C Connector 6P 3.0A Current Rating

Large Image :  High Speed USB Charging Cable USB 3.0 Type C Connector 6P 3.0A Current Rating

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: DL50010302

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: PE bag, Tube, Volume
Delivery Time: 5-10 days
Payment Terms: T/T, L/C
Supply Ability: 1000KK/month
Detailed Product Description
Product Family: USB Type-C Pin: 6P
Current Rating: 3.0 A Insulation Resistance: 100M Ω / MIN
OP Temperature: -25° ~ +85° Application: Charger
High Light:

usb 3.0 type c connector

,

mini usb connector

high speed usb charging cable USB Type-C Connector 6 Pin in Mobile power supply multiple usb charger





Product Details:



Product name: DALEE USB Type-C Connector
Secification: 6 Pin
Type : Type-C
Certification: ISO9001,UL,ROHS and the latest REACH
Insertion Force: 0.5~2.0kgf
Removal Force: 0.8~2.0kgf
Durability: 10000 cycles
Current Rating: 3.0A
Voltage Rating: 5.0 V
Current Rating: 1.0A
Shield: 50mΩ /MAX
Insulation Resistance: 100mΩ/MIN
Operating Temprature: -25℃ - +85 ℃
Contacts: Copper Alloy
Housing: Thermoplastic , UL94 V-0





Material Specification:

 1) Mid Plate: stainless steel

 2) Front shell : stainless steel

 3) Housing: Hig Temperature resistant plastic,UL94 V-0.

 4) Contacts : Copper Alloy



IR Reflow: be maintained for 10 seconds at 260°CThe peak temperature on the board shall ,.





Product Application:   Dalee connectors are  widely applied to lots of industries, such as action camera manual Mini Sport DV, cusumer electronics, automotive filed, medical equipment , military industry , Computer Peripheral Products , Rear DVR Video Recorder , unmanned aerial vehicle and so on .





Competitive Advantages:



1, One stop service of connectors with high quality and best service after sales .

2, Strict shipping ,100% tested before the delivery

3, we also can provide the customized products as the request of clients

4, samples can be provided for free in 1-3 days

5, fast delivery,purchasing orders shipped in 3-10 days





Payment term and delivery:



1. MOQ:1000pcs.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Delivery Time: 3-15 working days after order confirmed and the payment received.
