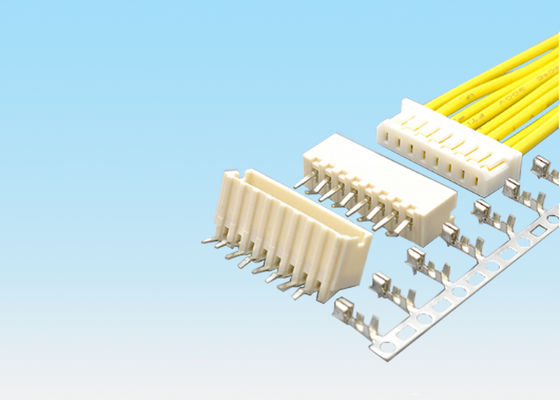

DIP Type Printed Circuit Board Connectors , Board To Wire Connector For Fingerprint Lock

DIP Type Printed Circuit Board Connectors , Board To Wire Connector For Fingerprint Lock
DIP Type Printed Circuit Board Connectors , Board To Wire Connector For Fingerprint Lock

Large Image :  DIP Type Printed Circuit Board Connectors , Board To Wire Connector For Fingerprint Lock

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: DL50011412

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PE bag, Tube, Volume
Delivery Time: 5-10 working days
Payment Terms: T/T,Western Union
Supply Ability: 10kk/ month
Detailed Product Description
Pitch: 2.0 Mm Type: DIP
Pin: 2-16P Insulation Resistance: 500mΩ/MIN
Current Rating: 1.0A Application: Fingerprint Lock
High Light:

wire to board terminal

,

circuit board power connectors

electronic cable connectors 2.0mm Pitch Single Row Dip type 2-16 Pin for fingerprint lock and Car tracking system



Product details:

Product name: DALEE Wire to Wire  Connector
Secification: 2.0mm Pitch
Type : Wire To Board
Certification: ISO9001,UL,ROHS and the latest REACH
Pin: 2-16 Pin
Rated voltage: 50V AC,DC
Contact Resistance: 20mΩ MAX
Current Rating: 1.0A
Withstand Voltage: 250V AC/min
Insulation Resistance: 500mΩ/MIN
Operating Temprature: -25℃ - +85 ℃
Application: fingerprint lock



Material Specification:

1)   Receptacle Housing: UL94 V-O.
2)   Plug Housing:   UL94 V-0.
3)   Terminal : phosphor Bronze,Tin Plated


Product Funcation:

1)  Dalee connector can prevent mismatches and facilitate plugging.
2)  Dalee connector ensures that the plug-in is strong and saves extra space.
3)  Plug more smoothly and provide pin contact protection.
4)  Dalee connector can prevent mismatches and facilitate plugging;
5)  we can provide different choices for customers to meet vide options to meet multiple application needs.


Dalee Main Export Markets : Asia,Africa,South and North America and Europe.

Product Application: Dalee connectors are widely applied to lots of industries, such as unmanned aerial vehicle,automotive filed, medical equipment , cusumer  electronics,cummunications industry ,military industry , computer peripheral products , rear DVR video recorder ,  action camera manual mini sport DV and so on .


Competitive Advantages:​

 1, Dalee company have the strong R&D team specialized in connector and model design including ROHS,SGS,ISO9001 and UL certification;
 2, One stop service of connectors with high quality and best service after sales;
 3, Quality certification ,Strict shipping ,100% tested before the delivery;
 4, we can provide diversified products including wire to wire connector,wire to board connector ,Board to Board conncetor and so on ;
 5, we also can provide the customized products as the request of clients.

Payment term and delivery:

1. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.
2. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton.
3. Payment term: 100% T/T in advance before production.
4. Payment way: T/T, Paypal , Western Union or others method.
5. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.
