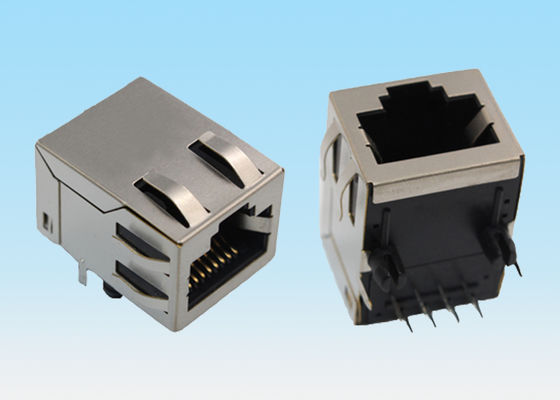

8 Pin RJ45 Network Connector Single Port Shield With Slot On Both Sides

8 Pin RJ45 Network Connector Single Port Shield With Slot On Both Sides
8 Pin RJ45 Network Connector Single Port Shield With Slot On Both Sides

Large Image :  8 Pin RJ45 Network Connector Single Port Shield With Slot On Both Sides

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: DL50011507

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PE bag, Tube, Volume
Delivery Time: 5-10 working days
Payment Terms: T/T,Western Union
Supply Ability: 10kk/ month
Detailed Product Description
Transformer: Without Type: DIP
Number Of Ports: Single Port Performance Speed: 100 BASE-T
Insulation Resistance: 500mΩ/MIN Withstand Voltage: 1000V AC/min
High Light:

rj45 cable connector

,

rj45 network connector

Open up with Transformer 8 Pin RJ45 connector shield with slot on both sides without Led light



Product details:



Product name: DALEE RJ45 Jack 4 ports Connector
Secification: DIP
Type :  RJ 45
Certification: ISO9001,UL,ROHS and the latest REACH
Pin:  8 Pin
Rated voltage: 150V AC,DC
Contact Resistance: 30mΩ MAX
Current Rating: 1.5A
Withstand Voltage: 1000V AC/min
Insulation Resistance: 500mΩ/MIN
Number of Ports:  single Port
Application:  Network products and Set-top boxes



RJ 45 Jack Connector Material :

1)
Contact Mating Area Plating Material: Gold 6u/15u/30u/50u.
2) Connector Type :Connector component
3) Gold Plating:1u ,3u 6u 15u 30u 50u.
4) Shield Material: Copper Alloy preplated with Nickel.




Dalee Connector Main Export Markets : Asia,Africa,South and North America and Europe and so on .




RJ 45 Connectors Application:

1) Automotive products
2) Switches
3) Smart home
4) Rear DVR video recorder
5) Medical equipment
6) Cummunications equipment
7) LAN Ethernet and network

8) Printed Circuit Board





Dalee Customized Product Services:



1) With or without LED light.

2) LED color can be green, yellow, orange, red and so on.

3) 90 ° or 180 ° Orientation such as Side Entry or Top Entry.

4) Contact Finish can be with 6u", 15u", 30u", 50u" gold plating.

5) Different size, Different Color, With or without Transformer.
6) Single Port or Multiple Port, Ganged structure or Stacked Structure.

7) With or without POE function.




Dalee Connector Advantages:​

 1,
we can provide diversified products including fpc cable connector,RF connector ,wafer conncetor and so on ;

 2, the strong R&D team specialized in connector and model design .
 3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification.

 4, Strict shipping ,100% tested before the delivery;



Payment term and delivery:



1. Delivery Time: 3-15 working days after order confirmed and the payment received
2. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.
3.
Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.
4. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton.
5.
Payment term: 100% T/T in advance before production.





Frequently Asked Question:



Q1: How To Order?

A: 1,please tell us what model and quantity you need;

2, then we will make a PI for you to confirm the order details;

3, when we confirmed everything, can arrange the payment;

4, finally we deliver the goods within the stipulated time.

Q2: When can we get the reply?

A: Any inquiries will be replied within 24 hours.

Q3: What’s your payment term?

A: We usually accept T/T as the main payment term, and other payments can also be negotiated

Q4: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q5: Quality problems?

A: If there is any quality problem or question, we could offer technical support or return service.
