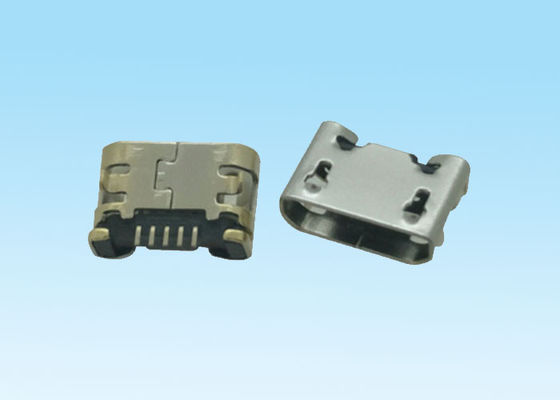

Silver Color USB C Connector , Micro USB Connector 6.4mm Straight Edge

Silver Color USB C Connector , Micro USB Connector 6.4mm Straight Edge
Silver Color USB C Connector , Micro USB Connector 6.4mm Straight Edge

Large Image :  Silver Color USB C Connector , Micro USB Connector 6.4mm Straight Edge

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: DL50010318

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PE bag, Tube, Volume
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000KK/month
Detailed Product Description
Operating Temprature: -30℃ - +80 ℃ Type: Straight Edge
Durability: 10000 Cycles Shield: 50mΩ /MAX
Current Rating: 1.0 A Max Colour: Silver
High Light:

micro usb connector

,

mini usb connector

Insulation Resistance with 100mΩ/MIN ,Micro USB connector 5 pin 6.4mm Straight Edge

Product Details:

Product name:DALEE USB Type-C Connector
Secification: 5 P
Type : Micro USB  6.4mm straight edge
Certification:ISO9001,UL,ROHS and the latest REACH
Total mating force:3.57kgf Max
Total unmating force:1.0 kgf Min
Durability:10000 cycles
Current Rating:1.0 A Max
Dielectric withstanding Voltage :100 V  for 1 min
Current Rating:1.0A
Shield:50mΩ /MAX
Insulation Resistance:100mΩ/MIN
Operating Temprature:-30℃ - +80 ℃
Contacts:Copper Alloy
Housing:Thermoplastic , UL94 V-0



Material Specification:

 1) Mid Plate: stainless steel
 2) Housing: Hig Temperature resistant plastic,UL94 V-0.
 3) Solder area: Au : G/F
 4) Front shell : stainless steel


Micro USB 5 PIN 6.4mm Straight Edge Drawing:

Silver Color USB C Connector , Micro USB Connector 6.4mm Straight Edge 0


Product Application:

1) Smart Lock.
2) Charging wires / charger.
3) Mobile power supply.
4) action camera manual Mini Sport DV.
5) Computer Peripheral Products.
6) Rear DVR Video Recorder


Payment term and delivery:

1. MOQ:1000pcs.
2. Trade Terms: FOB Shenzhen or EXW.
3. Payment term: 100% T/T in advance before production.
4. Payment way: T/T, Paypal , Western Union or others method.
5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.
6. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.


Frequently Asked Question:

Q: How to place an Order?
A: 1,please tell us what model and quantity you need;
2, then we will make a PI for you to confirm the order details;
3, when we confirmed everything, can arrange the payment;
4, finally we deliver the goods within the stipulated time.
Q: When can we get the reply?
A: Any inquiries will be replied within 24 hours.
Q: What’s your payment term?
A: We usually accept T/T as the main payment term, and other payments can also be negotiated
Q: How about samples ?
A:Samples is free,but you need to pay the freight charge.Please contact us for details.
