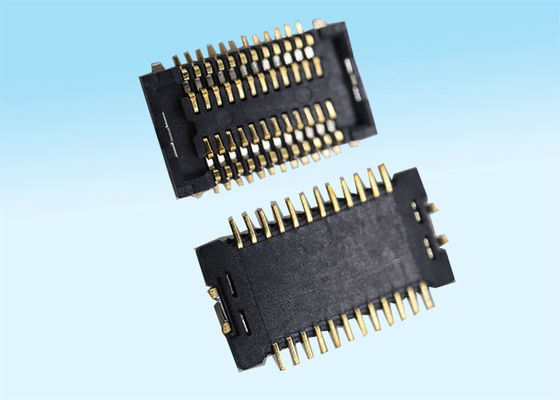

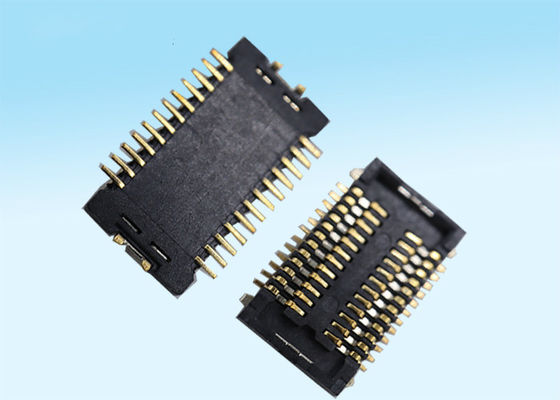

Smt Electronic Board Connectors 0.4mm Pitch AXK8L24125 /AXK7L60227 For Lens Module

Smt Electronic Board Connectors 0.4mm Pitch AXK8L24125 /AXK7L60227 For Lens Module
Smt Electronic Board Connectors 0.4mm Pitch AXK8L24125 /AXK7L60227 For Lens Module Smt Electronic Board Connectors 0.4mm Pitch AXK8L24125 /AXK7L60227 For Lens Module

Large Image :  Smt Electronic Board Connectors 0.4mm Pitch AXK8L24125 /AXK7L60227 For Lens Module

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: DL50010117

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: Loose in bag or box, Tray, Tube
Delivery Time: 5-15 working days
Payment Terms: T/T, L/C
Supply Ability: 1000K/month
Detailed Product Description
Type: SMT Type Part Number: AXK8L24125 /AXK7L60227
Gender: Male/Female Connector Type: Assembly Connector
Electrical Rating: AC/DC Insulation Resistance: 500M Ω
Application: Lens Module
High Light:

btb connector

,

board to board header connector

AXK8L24125 /AXK7L60227 / 0.4mm pitch 1.0mm high board to board smt connector





Product Description :



Product name: DALEE connector
Secification: 0.4mm Pitch
part number: AXK8L24125 /AXK7L60227
Certification: ISO9001,UL,ROHS and the latest REACH
Operating voltage: 10V AC(RMS)/DC
Withstand Volt : 200 V AC/minute
Operating Temprature: -25 ℃ - +80 ℃
Insulation Resistance 500M ohms min. at 250VDC
Dielectric withstandig voltae: 500VAC/1minute
Contact Resistance: 1000m ohms max
Contact material: Phosphor bronze/gold plated
Housing: LCP, UL94V-0, white







Competitive Advantages:



1, 11 year's experience in the electronic business

2, Strong R&D team specialized in connector and model design

3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification

4, Strict shipping ,100% tested before delivery

5, Fast delivery,purchasing orders shipped in 3-10 days

6, Samples can be provided for free in 1-3 days





Product Application:



1, display .

2, Communications Industry.

3, Security Equipment.

4, Automotive Filed

5, Network Communications

6, Measuring Instruments





Payment term and delivery



1. Delivery Time: 3-15 working days after order confirmed and the payment received.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

6. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton

7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.
