Home ProductsHigh Power RF Connectors

IPX U.FL RF Coaxial Connector SMT Solder PCB Mount Operating Temp Range -40℃ - +85 ℃

Certification
China Dalee Electronic Co., Ltd. certification
China Dalee Electronic Co., Ltd. certification
We have cooperated with Dalee company about two years. They are professional with excellent quality and best service. Thank you very much.

—— Matthew Cornish

Better price and high quality, this helped me a lot. Timely booking, satisfactory service and full support. I am glad to work with you.

—— Daniel Reisfeld

Dalee company have provided kinds of connectors with high quality and timely delivery. I like them very much, and they have became our main connector supplier in China.

—— Mike Mcmaster

I'm Online Chat Now

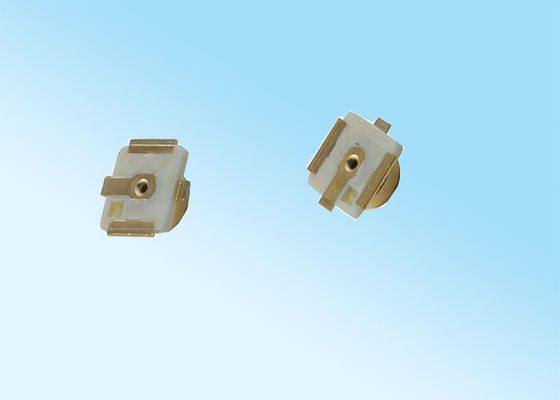

IPX U.FL RF Coaxial Connector SMT Solder PCB Mount Operating Temp Range -40℃ - +85 ℃

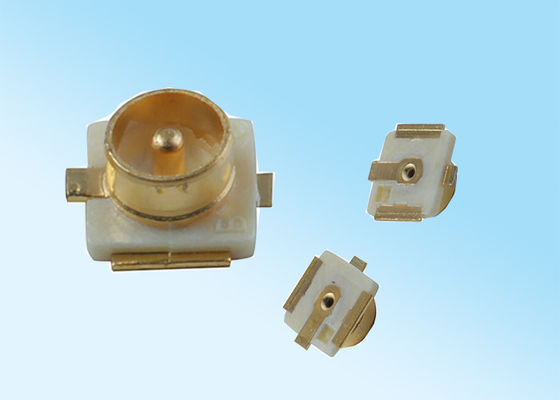

IPX U.FL RF Coaxial Connector SMT Solder PCB Mount Operating Temp Range -40℃ - +85 ℃

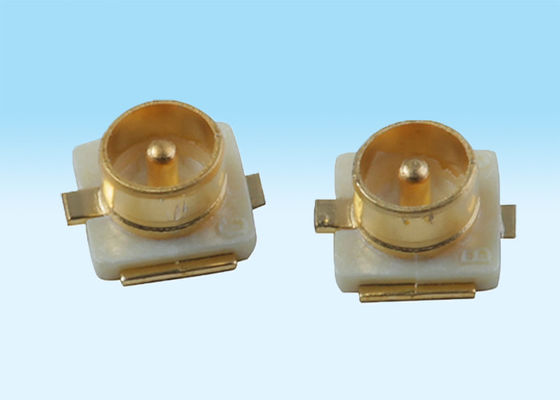

IPX U.FL RF Coaxial Connector SMT Solder PCB Mount Operating Temp Range -40℃ - +85 ℃ IPX U.FL RF Coaxial Connector SMT Solder PCB Mount Operating Temp Range -40℃ - +85 ℃ IPX U.FL RF Coaxial Connector SMT Solder PCB Mount Operating Temp Range -40℃ - +85 ℃

Large Image :  IPX U.FL RF Coaxial Connector SMT Solder PCB Mount Operating Temp Range -40℃ - +85 ℃

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: DL50011213

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: volume
Delivery Time: 5-10 working days
Payment Terms: T/T, L/C
Supply Ability: 5000K/month
Detailed Product Description
Product Name: High Power RF Connectors Gender: Female
Competitors: I-PEX, HRS, Tyco Operating Temprature: -40℃ - +85 ℃
Applicable Frequency: DC~6 GHz Application: Water Dancing Speaker Dc Motor
Packaging: Tape & Reel (TR) Insulation Resistance: 500 MΩ Min
High Light:

coaxial power connector

,

rf coaxial connector

IPX U.FL RF Coaxial Connector SMT Solder PCB Mount operating temperature range -40℃ - +85 ℃





Product Details:





Product name: DALEE RF Connector
Secification:   one generation
Type :

Female

Certification: ISO9001,UL,ROHS and the latest REACH
Voltage Rating: 60 VAC
Operating Temprature: -40℃ - +85 ℃
Nominal Characteristic Impedance: 50 ohm
Applicable Frequency: DC~6 GHz
Vspr: 1.3 MAX.(DC~3GHz). 1.5 MAX.(3~6GHz)
Contact plating : 1u’’/1.5u’’
Grounded plating: 50u’’ MIN.Nickel underplating
Application: Routers





Application:



This SMT type micro coaxial RF Rec .products are designed for mobile phones ,Wireless LAN ,Mini –PCI ,Bluetooth , PDA ,GPS ,electronic measuring instruments,etc.





Technology parameters :


Frequency Range: 0 - 6GHz

Impedance: 50Ω

Insulation Resistance: 500 MΩ Min

Dielectric Withstanding Voltage: 200V AC/1 Min

Inner Contact Resistance: 20 mΩ Max

Outer Contact Resistance: 10 mΩ Max

Voltage Standing wave Ratio(VSWR): 1.3 Max. ( 0 - 3GHz 1.2Max).

Mechanical Durability: 100 Cycles

Relative Humidity: 95% R.H.Max

Operating Temperature: -40℃~+85℃



Rating :

1, Initial Insulation Resistance : 500M ohm
2,Contact Resistance  :
  inner contact : 20 -25 milliohm Max.(Inial  )
  outer contact 10 -15 milliohm Max.(Inial  )
3, Withstand Voltage  : 200V AC 1 MIN
4, V.S.W.R:  : 1.3 Max (0-6GHz)




Payment term and delivery:



1. MOQ:1000pcs.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.





Dalee Connector Advantages:

1, One stop service of connectors with high quality and best service after sales .

2, Strong R&D team specialized in connector and model design.

3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification.

4, More than 10 year's experience in the electronic business.

5, Strict shipping ,100% tested before the delivery

6, we also can provide the customized products as the request of clients



IPX U.FL RF Coaxial Connector SMT Solder PCB Mount Operating Temp Range -40℃ - +85 ℃ 0
