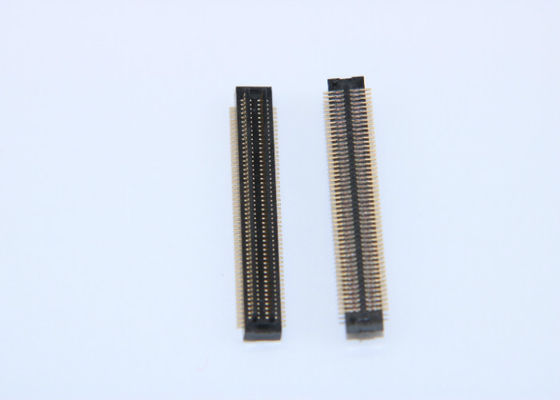

Gold Plating Board To Board Connector 0.5mm Pitch 2.0mm AC/DC 5001-BTB0520-100M

Gold Plating Board To Board Connector 0.5mm Pitch 2.0mm AC/DC 5001-BTB0520-100M
Gold Plating Board To Board Connector 0.5mm Pitch 2.0mm AC/DC 5001-BTB0520-100M

Large Image :  Gold Plating Board To Board Connector 0.5mm Pitch 2.0mm AC/DC 5001-BTB0520-100M

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: 5001-BTB0520-100M

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: Loose in bag or box, Tray, Tube
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C, Western Union,paypal
Supply Ability: 1000K/month
Detailed Product Description
Product Name: Board To Board Power Connector Part Number: 5001-BTB0520-100M
Electrical Rating: AC/DC Insulation Resistance: 500M Ω
Color: Black Pins: 2*25 P
High Light:

board to board power connectors

,

board to board header connector



Board To Board Connector with double row contact ,0.5mm pitch 2.0mm 2*50 pins 5001-BTB0520-100M





ADVANTAGES:



• Multiple add-on board options and ease of upgradeability or accommodation of future design changes.

• Mating different combinations of headers and sockets will create difference between-board spaces.

• Low stack heights, high I/O density and compact insulator conserve valuable PC board space.

• Telecom switches

• Servers

• Processors T





YPICAL APPLICATIONS:



• Medical equipment

• Aerospace

• Military defense systems







Product Description :



Product name: DALEE BTB connector
Secification: 0.5mm Pitch
part number:  5001-BTB0520-100M
Certification: ISO9001,UL,ROHS and the latest REACH
Operating voltage: 10V AC(RMS)/DC
Withstand Volt : 200 V AC/minute
Operating Temprature: -25 ℃ - +80 ℃
Insulation Resistance 500M ohms min. at 250VDC
Dielectric withstandig voltae: 500VAC/1minute
Contact Resistance: 1000m ohms max
Contact material: Phosphor bronze/gold plated
Housing: LCP, UL94V-0, white









Payment term and delivery



1. Delivery Time: 3-15 working days after order confirmed and the payment received.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

6. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton

7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.







Shipping:



1. We can shipping all over the world by DHL , UPS , FedEx and EMS . The packaging is very safe and strong.

     If you have any special needs please notify me.

2. It will take around 3-5 days to reach your hands.







Product Type & Condition :



Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated .                                               So,please consult the stock situation when you inquire.





Warranty & Guarantee : All components we sell the quality with 30 days Return policy from the day of shipment.
