Surface Mount SMD UFL IPEX IPX Coaxial Connector with good price

Name: Surface Mount SMD UFL IPEX IPX Coaxial Connector with good price
Brand: DALEE
SKU: 5001-RF001-001
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (165 reviews)

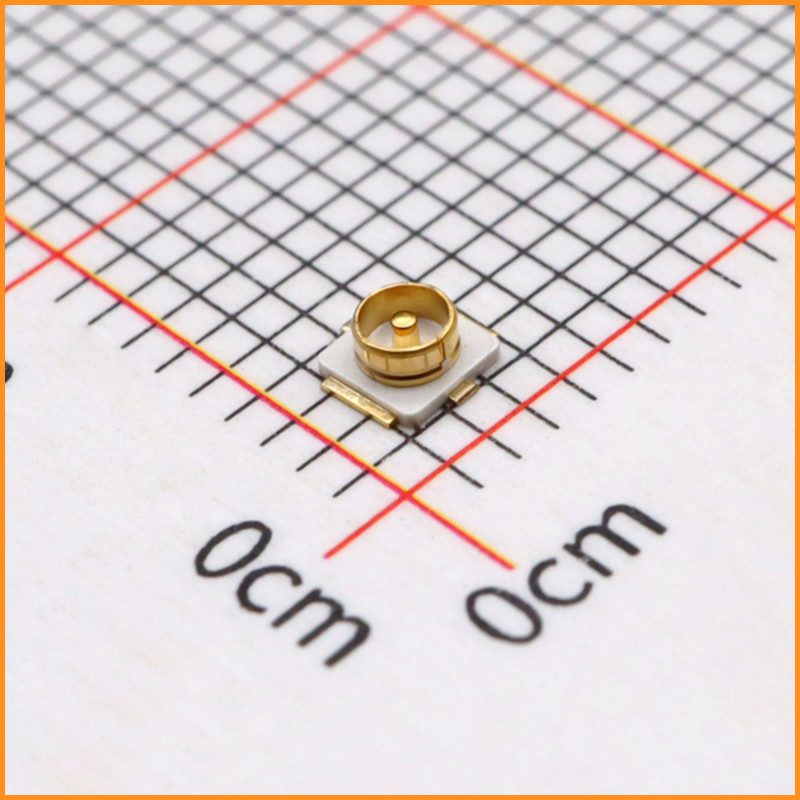

Large Image : Surface Mount SMD UFL IPEX IPX Coaxial Connector with good price

Product Details:

Place of Origin:	Guangdong,China(Mainland)
Brand Name:	DALEE
Certification:	ROHS ,SGS, ISO9001，ISO14001
Model Number:	5001-RF001-001

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	volume
Delivery Time:	3 working days
Payment Terms:	T/T, L/C
Supply Ability:	5000K/month

Contact Now

Detailed Product Description

Product Name:	High Power RF Connectors	Gender:	Female
Competitors:	I-PEX, HRS, Tyco	Operating Temprature:	-40℃ - +85 ℃
Applicable Frequency:	DC~6 GHz	Application:	Instrumentation
Packaging:	Tape & Reel (TR)	Voitage:	60 VAC

Surface Mount SMD UFL IPEX IPX Coaxial Connector with good price

Product Details:

Product name:	DALEE RF Connector
Secification:	one generation
Type :	Female
Certification:	ISO9001,UL,ROHS and the latest REACH
Voltage Rating:	60 VAC
Operating Temprature:	-40℃ - +85 ℃
Nominal Characteristic Impedance:	50 ohm
Applicable Frequency:	DC~6 GHz
Vspr:	1.3 MAX.(DC~3GHz). 1.5 MAX.(3~6GHz)
Contact plating :	1u’’/1.5u’’
Grounded plating:	50u’’ MIN.Nickel underplating
Application:	Routers

Application:

This SMT type micro coaxial RF Rec .products are designed for mobile phones ,Wireless LAN ,Mini –PCI ,Bluetooth , PDA ,GPS ,electronic measuring instruments,etc.

Technology parameters :

Frequency Range: 0 - 6GHz

Impedance: 50Ω

Insulation Resistance: 500 MΩ Min

Dielectric Withstanding Voltage: 200V AC/1 Min

Inner Contact Resistance: 20 mΩ Max

Outer Contact Resistance: 10 mΩ Max

Voltage Standing wave Ratio(VSWR): 1.3 Max. ( 0 - 3GHz 1.2Max).

Mechanical Durability: 100 Cycles

Relative Humidity: 95% R.H.Max

Operating Temperature: -40℃~+85℃

Rating :

1, Initial Insulation Resistance : 500M ohm
2, Contact Resistance :
inner contact : 20 -25 milliohm Max.(Inial )
outer contact 10 -15 milliohm Max.(Inial )
3, Withstand Voltage : 200V AC 1 MIN
4, V.S.W.R: : 1.3 Max (0-6GHz)

Payment term and delivery:

1. MOQ:1000pcs.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

Dalee Connector Advantages:

1, One stop service of connectors with high quality and best service after sales .

2, Strong R&D team specialized in connector and model design.

3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification.

4, More than 10 year's experience in the electronic business.

5, Strict shipping ,100% tested before the delivery
