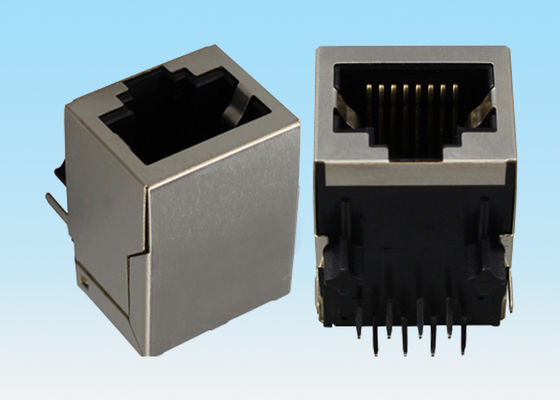

DIP Type Mini RJ45 Connector , Ethernet Cable RJ45 Connector Without Card Slot

DIP Type Mini RJ45 Connector , Ethernet Cable RJ45 Connector Without Card Slot
DIP Type Mini RJ45 Connector , Ethernet Cable RJ45 Connector Without Card Slot

Large Image :  DIP Type Mini RJ45 Connector , Ethernet Cable RJ45 Connector Without Card Slot

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: DL50011502

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PE bag, Tube, Volume
Delivery Time: 5-10 working days
Payment Terms: T/T,Western Union
Supply Ability: 10kk/ month
Detailed Product Description
Type: DIP Pin: 8 P
Card Slot: Without Withstand Voltage: 1000V AC/min
Operating Temperature: -40℃ - +85 ℃ Application: Set-top Boxes
High Light:

rj45 network connector

,

mini rj45 connector

RJ45 Jack Connector Without LED and Card Slot 90 Degree Single port 1*1 in Set-top Boxes



Product details:

Product name: DALEE Wire to Wire  Connector
Secification: 90 Degree
Type :  RJ 45
Certification: ISO9001,UL,ROHS and the latest REACH
Pin:  8 Pin
Rated voltage: 150V AC,DC
Contact Resistance: 30mΩ MAX
Current Rating: 1.5A
Withstand Voltage: 1000V AC/min
Insulation Resistance: 500mΩ/MIN
Number of Ports:  Single Port 1 X 1
Application:  Set-top Boxes



Material :

1) Receptacle Housing: ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0).
2) Contact WireDiameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness  .
3) Shield: 0.20~0.25mm thickness brass with tin plated.

4) RoHS peak wave solder: RoHS peak wave solder temperature rating 260℃±5℃.
5) S torage  Temperature: -40℃ - +85 ℃


Dalee Connector Main Export Markets : Asia,Africa,South and North America and Europe.




Product Application:

1) Set-top Boxes and video
2)  Multifunction printers (MFP)
3)  Cummunications and network
4)  Medical equipment
5)  Automotive products
6)   Switch and smart home


Dalee Connector Advantages:​

 1,
One stop service of connectors with high quality and best service after sales;
 2, the strong R&D team specialized in connector and model design including ROHS,SGS,ISO9001 and UL certification;
 3, Quality certification ,Strict shipping ,100% tested before the delivery;
 4, we can provide diversified products including RJ 45 connector,Wafer connector ,FPC conncetor and so on ;


Payment term and delivery:

1. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.
2. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.

3. Payment term: 100% T/T in advance before production.
4. Payment way: T/T, Paypal , Western Union or others method.

5. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton.
