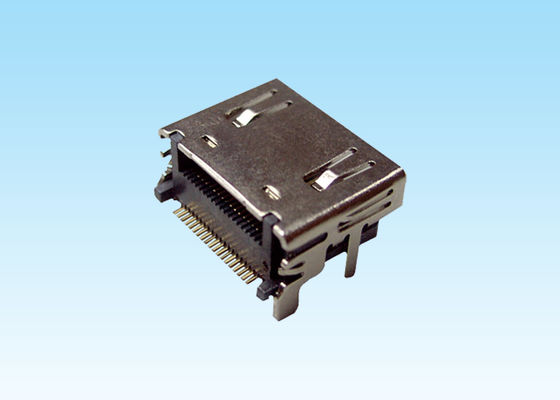

19 Pin HDMI Cable Connector Gold Plated Contact Housing Long Service Life

19 Pin HDMI Cable Connector Gold Plated Contact Housing Long Service Life
19 Pin HDMI Cable Connector Gold Plated Contact Housing Long Service Life

Large Image :  19 Pin HDMI Cable Connector Gold Plated Contact Housing Long Service Life

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: DL50010902

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PE bag, Tube, Volume
Delivery Time: 5-10 working days
Payment Terms: T/T,Western Union
Supply Ability: 10kk/ month
Detailed Product Description
Type: DIP Pin: 19 P
Rated Voltage: 40 V Contact Housing: Gold Plated
Contact: Copper Alloy Application: PCB Board
High Light:

mini hdmi connector

,

hdmi plug connector

19 Pin HDMI Cable Connector A-Type Dip of four foot with Gold -plated used in PCB



Product details:



Product name: DALEE HDMI Cable Connector
Secification: DIP
Type : HDMI-A
Gender: Female
Certification: ISO9001,UL,ROHS and the latest REACH
Pin: 19 Pin
Rated voltage: 40 V
Rated Current: 0.5 A
Contact Resistance: 10mΩ MAX
Insulation Resistance(unmated): 100mΩ/MIN AT 500 VDC
Insulation Resistance(mated): 10mΩ/MIN AT 150 VDC
Insertion Force: 44.1 N/ MAX
Extroction Force: 5 N/MIN, 25N/ MAX
Life : 8000 Cycles min
Business Type: Manufacturer
Application: PCB board



HDMI Cable Connector Material :
1) Gold Plating:1u ,3u 6u 15u 30u 50u.
2) Storage  Temperature: -20ºC to +85ºC
3) Contact Mating Area Plating Material: Gold 6u/15u/30u/50u
4) Shield Material: Copper Alloy preplated with Nickel.

5) Operating Temperature: -20ºC to +85ºC


HDMI Connector Drawing :


19 Pin HDMI Cable Connector Gold Plated Contact Housing Long Service Life 0



Dalee Connector Main Export Markets : Africa,Asia,South and North America and Europe and so on .



HDMI Connectors Application:

1)  Automotive products
2)  Computer notebook
3)  smart home products
4)  LAN Ethernet and network
5)  Medical equipment
6)  Fingerprint lock
7)  TV boxes
8)  Rear DVR video recorder




Dalee Connector Advantages:​


1, samples can be provided for free in 1-3 days
2, Strict shipping ,100% tested before the delivery.
3, One stop service of connectors with high quality and best service after sales
4, Quality certification ,including ROHS,SGS,ISO9001 and UL certification.
5, we also can provide the customized products as the request of clients.
6, fast delivery,purchasing orders shipped in 3-10 days.


Payment term and delivery:


1. MOQ:1000pcs.
2. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs
3. Payment way: T/T, Paypal , Western Union or others method.
4. Payment term: 100% T/T in advance before production.
