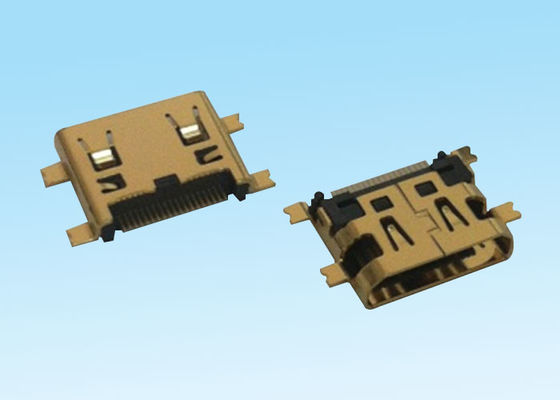

SMT SMD C Type HDMI Cable Connector Female 19 Pin Gold Plated For PCB

Certification
China Dalee Electronic Co., Ltd. certification
China Dalee Electronic Co., Ltd. certification
We have cooperated with Dalee company about two years. They are professional with excellent quality and best service. Thank you very much.

—— Matthew Cornish

Better price and high quality, this helped me a lot. Timely booking, satisfactory service and full support. I am glad to work with you.

—— Daniel Reisfeld

Dalee company have provided kinds of connectors with high quality and timely delivery. I like them very much, and they have became our main connector supplier in China.

—— Mike Mcmaster

I'm Online Chat Now

SMT SMD C Type HDMI Cable Connector Female 19 Pin Gold Plated For PCB

SMT SMD C Type HDMI Cable Connector Female 19 Pin Gold Plated For PCB
SMT SMD C Type HDMI Cable Connector Female 19 Pin Gold Plated For PCB

Large Image :  SMT SMD C Type HDMI Cable Connector Female 19 Pin Gold Plated For PCB

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: DL50010906

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PE bag, Tube, Volume
Delivery Time: 5-10 working days
Payment Terms: T/T,Western Union
Supply Ability: 10kk/ month
Detailed Product Description
Type: Smt Business: Factory
Life: 8000 Cycles Min Contact Resistance: 10mΩ MAX
Rated Voltage: 40 V
High Light:

mini hdmi connector

,

hdmi cord connector

SMT SMD HDMI Ctype Dalee Connector female 19 pin with Gold plated connectors for PCB



Product details:

Product name: DALEE HDMI Cable Connector
Secification: DIP
Type : HDMI-C
Gender: Female
Certification: ISO9001,UL,ROHS and the latest REACH
Pin: 19 Pin
Rated voltage: 40 V
Rated Current: 0.5 A
Contact Resistance: 10mΩ MAX
Insulation Resistance(unmated): 100mΩ/MIN AT 500 VDC
Insulation Resistance(mated): 10mΩ/MIN AT 150 VDC
Insertion Force: 44.1 N/ MAX
Extroction Force: 5 N/MIN, 25N/ MAX
Life : 8000 Cycles min
Business Type: Manufacturer
Application:  PCB



HDMI Cable Connector Material :


1) Storage Temperature: -20ºC to +85ºC.
2) Operating Temperature: -20ºC to +85ºC.
3) Contact Mating Area Plating Material: Gold 6u/15u/30u/50u.
4)
Gold Plating:1u ,3u 6u 15u 30u 50u.
5) Shield Material: Copper Alloy preplated with Nickel.

Dalee Connector Main Export Markets : Africa,Asia,South and North America and Europe and so on .

HDMI Connectors Application:

1)  Automotive products
2)  Printed circuit board
3)  Watch TV boxes
4)  LAN Ethernet and network
5)  Medical equipment
6)  Rear DVR video recorder



Dalee Connector Advantages:​


1, One stop service of connectors with high quality and best service after sales
2, Strict shipping ,100% tested before the delivery.
3, fast delivery,purchasing orders shipped in 3-10 days.
4, Quality certification ,including ROHS,SGS,ISO9001 and UL certification.
5, samples can be provided for free in 1-3 days
6, we also can provide the customized products as the request of clients.




Payment term and delivery:

1. MOQ:1000pcs.
2. Trade Terms: FOB Shenzhen or EXW.
3. Payment term: 100% T/T in advance before production.
4. Payment way: T/T, Paypal , Western Union or others method.
5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.
6. Delivery Time: 3-15 working days after order confirmed and the payment received.



Frequently Asked Question:

Q: How To Order?
A: 1,please tell us what model and quantity you need;
2, then we will make a PI for you to confirm the order details;
3, when we confirmed everything, can arrange the payment;
4, finally we deliver the goods within the stipulated time.
Q: When can we get the reply?
A: Any inquiries will be replied within 24 hours.
Q: What’s your payment term?
A: We usually accept T/T as the main payment term, and other payments can also be negotiated
Q:How about your your delivery time ?
A:  It Usually is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
