Product Details:
Payment & Shipping Terms:
|
| Product Family: | USB Type-C | Product Status: | Active |
|---|---|---|---|
| Type: | Sink | Insulation Resistance: | 100M Ω Min |
| OP Temperature: | -25° ~ +85° | Application: | PCB Board |
| High Light: | micro usb connector,mini usb connector |
||

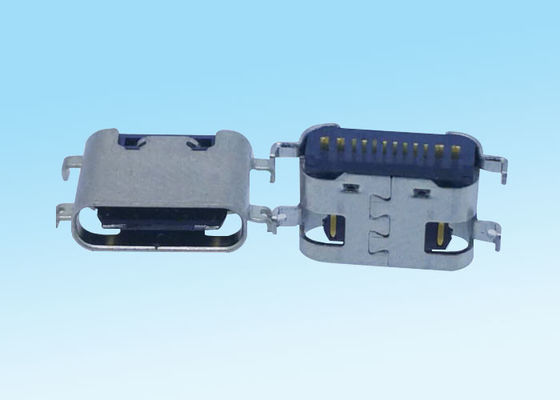

USB Type-C Connector 16 Pin in Rear DVR Video Recorder and Unmanned Aerial Vehicle
Product Details:
| Product name: | DALEE USB Type-C Connector |
| Secification: | 16 P |
| Type : | Sink |
| Certification: | ISO9001,UL,ROHS and the latest REACH |
| Insertion Force: | 0.5~2.0kgf |
| Removal Force: | 0.8~2.0kgf |
| Durability: | 10000 cycles |
| Current Rating: | 3.0A |
| Voltage Rating: | 5.0 V |
| Current Rating: | 1.0A |
| Shield: | 50mΩ /MAX |
| Insulation Resistance: | 100mΩ/MIN |
| Operating Temprature: | -25℃ - +85 ℃ |
| Contacts: | Copper Alloy |
| Housing: | Thermoplastic , UL94 V-0 |
Material Specification:
1) Mid Plate: stainless steel
2) Front shell : stainless steel
3) Housing: Hig Temperature resistant plastic,UL94 V-0.
4) Contacts : Copper Alloy
IR Reflow: The peak temperature on the board shall ,be maintained for 10 seconds at 260°C.
Drawing:
Product Application: Dalee connectors are widely applied to lots of industries, such as cummunications industry ,cusumer electronics, automotive filed, medical equipment , military industry , Computer Peripheral Products , action camera manual Mini Sport DV. Rear DVR Video Recorder , unmanned aerial vehicle and so on .
Competitive Advantages:
1, More than 10 year's experience in the electronic business.
2, Strong R&D team specialized in connector and model design.
3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification.
4, One stop service of connectors with high quality and best service after sales .
5, Strict shipping ,100% tested before delivery
6, we also can provide the customized products as the request of clients
Payment term and delivery:
1. MOQ:1000pcs.
2. Trade Terms: FOB Shenzhen or EXW.
3. Payment term: 100% T/T in advance before production.
4. Payment way: T/T, Paypal , Western Union or others method.
5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.
6. Delivery Time: 3-15 working days after order confirmed and the payment received.
7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.
