Splint Type 24 Pin USB Connector , USB 3.1 C Connector 0.5 - 2.0kgf Insertion Force

Certification
China Dalee Electronic Co., Ltd. certification
China Dalee Electronic Co., Ltd. certification
We have cooperated with Dalee company about two years. They are professional with excellent quality and best service. Thank you very much.

—— Matthew Cornish

Better price and high quality, this helped me a lot. Timely booking, satisfactory service and full support. I am glad to work with you.

—— Daniel Reisfeld

Dalee company have provided kinds of connectors with high quality and timely delivery. I like them very much, and they have became our main connector supplier in China.

—— Mike Mcmaster

I'm Online Chat Now

Splint Type 24 Pin USB Connector , USB 3.1 C Connector 0.5 - 2.0kgf Insertion Force

Splint Type 24 Pin USB Connector , USB 3.1 C Connector 0.5 - 2.0kgf Insertion Force
Splint Type 24 Pin USB Connector , USB 3.1 C Connector 0.5 - 2.0kgf Insertion Force

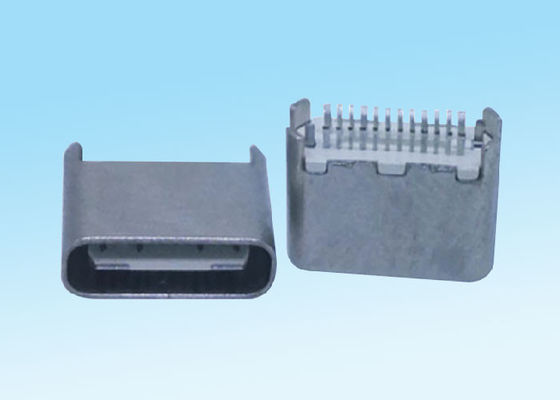

Large Image :  Splint Type 24 Pin USB Connector , USB 3.1 C Connector 0.5 - 2.0kgf Insertion Force

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: DL50010306

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: PE bag, Tube, Volume
Delivery Time: 5-10 days
Payment Terms: T/T, L/C
Supply Ability: 1000KK/month
Detailed Product Description
Gender: Female Pin: 24 P
Type: Splint Operating Temprature: -25℃ - +85 ℃
Durability: 10000 Cycles Application: Usb Travel Charger
High Light:

micro usb connector

,

mini usb connector

usb 3.1 type c connector Plug Type Splint For PCB 24 Pin female in camera manual and usb travel charger





Product Details:



Product name: DALEE USB Type-C Connector
Secification:  24 P
Type :  Splint
Certification: ISO9001,UL,ROHS and the latest REACH
Insertion Force: 0.5~2.0kgf
Removal Force: 0.8~2.0kgf
Durability: 10000 cycles
Current Rating: 3.0A
Voltage Rating: 5.0 V
Current Rating: 1.0A
Shield: 50mΩ /MAX
Insulation Resistance: 100mΩ/MIN
Operating Temprature: -25℃ - +85 ℃
Contacts: Copper Alloy
Housing: Thermoplastic , UL94 V-0





Material Specification:



 1) Housing: Hig Temperature resistant plastic,UL94 V-0.

 2) Contacts : Copper Alloy

 3) Housing c0lor: Black

 4) Functional area: Au 3u''

 5) Solder area: Au : G/F





IR Reflow: The peak temperature on the board shall ,be maintained for 10 seconds at 260°C.





Product Application:   Dalee connectors are  widely applied to lots of industries, such as unmanned aerial vehicle, rear DVR video recorder , cummunications industry ,cusumer electronics,computer peripheral products , action camera manual mini sport DV, automotive filed, medical equipment , military industry and so on .





Competitive Advantages:



1, Strong R&D team specialized in connector and model design.

2, samples can be provided for free in 1-3 days .

3, Strict shipping ,100% tested before delivery

4, Quality certification ,including ROHS,SGS,ISO9001 and UL certification.

5, More than 10 year's experience in the electronic business.





Payment term and delivery:



1. MOQ:1000pcs.

2. Trade Terms: FOB Shenzhen or EXW.

3. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

4. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation..

5. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton
