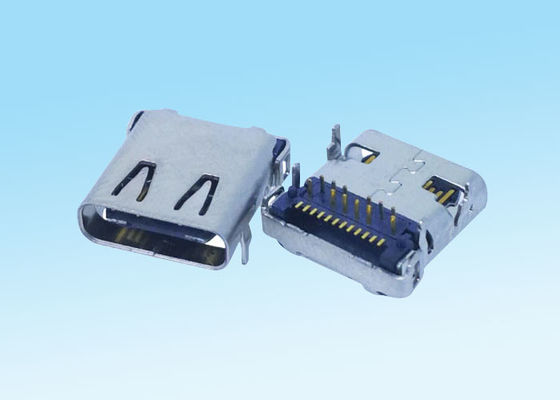

SMT / DIP Type 24 Pin USB Type C Connector Copper Alloy Contacts Long Lifetime

SMT / DIP Type 24 Pin USB Type C Connector Copper Alloy Contacts Long Lifetime
SMT / DIP Type 24 Pin USB Type C Connector Copper Alloy Contacts Long Lifetime

Large Image :  SMT / DIP Type 24 Pin USB Type C Connector Copper Alloy Contacts Long Lifetime

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: DL50010307

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: PE bag, Tube, Volume
Delivery Time: 5-10 days
Payment Terms: T/T, L/C
Supply Ability: 1000KK/month
Detailed Product Description
Type: SMT And DIP Pin: 24 P
Operating Temprature: -25℃ - +85 ℃ Contacts: Copper Alloy
Application: Computer Peripheral Mounting Type: SMT
High Light:

usb 3.0 type c connector

,

micro usb connector

micro usb type c connector SMT and DIP Type 24 Pin in usb 3.1 type c charger and micro usb data cable



Product Details:



Product name: DALEE USB Type-C Connector
Secification:  24 P
Type :  SMT and DIP
Certification: ISO9001,UL,ROHS and the latest REACH
Insertion Force: 0.5~2.0kgf
Removal Force: 0.8~2.0kgf
Durability: 10000 cycles
Current Rating: 3.0A
Voltage Rating: 5.0 V
Current Rating: 1.0A
Shield: 50mΩ /MAX
Insulation Resistance: 100mΩ/MIN
Operating Temprature: -25℃ - +85 ℃
Contacts: Copper Alloy
Housing: Thermoplastic , UL94 V-0





Material Specification:



 1) Housing color: Black

 2) Functional area: Au 3u''

 3) Housing: Hig Temperature resistant plastic,UL94 V-0.

 4) Contacts : Copper Alloy





IR Reflow: The peak temperature on the board shall ,be maintained for 10 seconds at 260°C.





Product Application:   Dalee connectors are  widely applied to lots of industries, such as action camera manual mini sport DV, unmanned aerial vehicle, rear DVR video recorder , cummunications industry ,cusumer electronics,computer peripheral products , automotive filed, medical equipment and so on .





Competitive Advantages:



1, Strong R&D team specialized in connector and model design.

2, samples can be provided for free in 1-3 days .

3, Strict shipping ,100% tested before delivery

4, More than 10 year's experience in the electronic business.

5, fast delivery,purchasing orders shipped in 3-10 days



Payment term and delivery:



1. MOQ:1000pcs.

2. Trade Terms: FOB Shenzhen or EXW.

3. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

4, fast delivery,purchasing orders shipped in 3-10 days

5. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation..

6. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton
