Full Plastic T Flash Memory Card Connector Ticket Collector 8 Pin Active Status

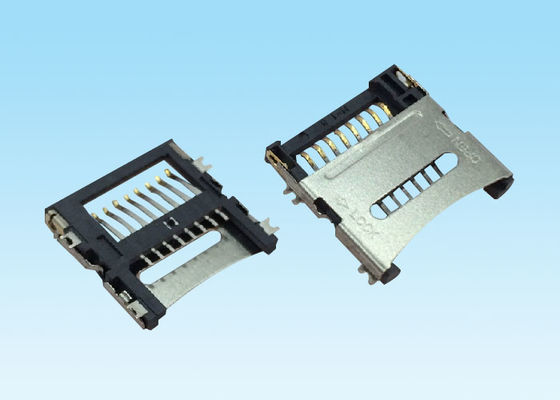

Large Image : Full Plastic T Flash Memory Card Connector Ticket Collector 8 Pin Active Status

Product Details:

Place of Origin:	Guangdong,China(Mainland)
Brand Name:	DALEE
Certification:	ROHS ,SGS, ISO9001
Model Number:	DL50010802

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Packaging Details:	Volume
Delivery Time:	5-10 working days
Payment Terms:	T/T, L/C

Contact Now

Detailed Product Description

Product Family:	Memory Card Connectors	Product Status:	Active
Type:	T-Flash	PIN:	8p
Insulation Resistance:	500M Ω Min	OP Temperature:	-20° ~ +85°
High Light:	micro sd card connector , memory module connectors

1.8mm High Simple Full Plastic T-Flash Memory Card Connector ticket collector PIN=8p

Product Details:

Product name:	DALEE Connector
Secification:	1.8mm High
Type:	T-Flash
Certification:	ISO9001,UL,ROHS and the latest REACH
Contact Resistance:	60 Milliohms max
Insulation Resistance	1000 Megohms min
Voltage Rating:	50 V
Current Rating:	1.0A
Operating Temprature:	-20 ℃ - +85 ℃
Durability:	500 cycles
Housing:	Thermoplastic , UL94- V0

Product Application: Dalee connectors are widely applied tocummunications equipments, cusumer electronics, smart home, automotive filed, medical equipment , data module and so on.
