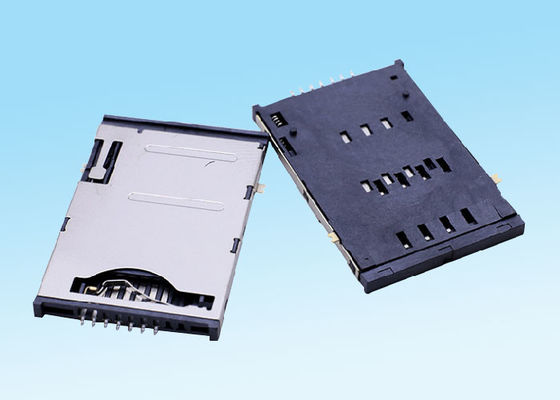

7 Pin SIM Card Socket Connector With CD Detect Foot In Small Mobile Phone

7 Pin SIM Card Socket Connector With CD Detect Foot In Small Mobile Phone
7 Pin SIM Card Socket Connector With CD Detect Foot In Small Mobile Phone

Large Image :  7 Pin SIM Card Socket Connector With CD Detect Foot In Small Mobile Phone

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: DL50010712

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PE bag, Tube, Volume
Delivery Time: 5-10 working days
Payment Terms: T/T, L/C
Supply Ability: 5000000/month
Detailed Product Description
PIN: 7p High: 1.8~2.2mm
Type: Push Housing: Thermoplastic , UL94- V0
Contact Resistance: 60 Milliohms Max Application: Moblie Phone
High Light:

sim card socket connector


push type sim connector

Push Type SIM Card Connector 1.8mm~2.2mm High Pin=6+1 with CD Detect Foot in small mobile phone



Product Details:


Product name: DALEE Connector
Secification: 1.8mm ~2.2mm High
Type:  Push
Certification: ISO9001,UL,ROHS and the latest REACH
Contact Resistance: 60 Milliohms max
Insulation Resistance 1000 Megohms min
Voltage Rating: 50 V
Current Rating: 1.0A
Operating Temprature: -20 ℃ - +85 ℃
Durability: 500 cycles
Housing: Thermoplastic , UL94- V0




Product Application: Dalee connectors are widely applied tocummunications equipments, cusumer electronics, smart home, automotive filed, medical equipment , data module and so on .




Dalee Main Export Markets : Asia,Africa,South and North America and Europe.



Payment term and delivery


1. MOQ:500pcs. for some products we do not have the MOQ.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

6. Delivery Time: 3-15 working days after order confirmed and the payment received.

7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.

8. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton.
