Product Details:
Payment & Shipping Terms:
|
| LED: | Without | Type: | 90 Degree |
|---|---|---|---|
| Color: | Silver | POE: | With |
| Plastic Material: | Black PBT | Application: | Ethernet |
| High Light: | rj45 cable connector,mini rj45 connector |
||

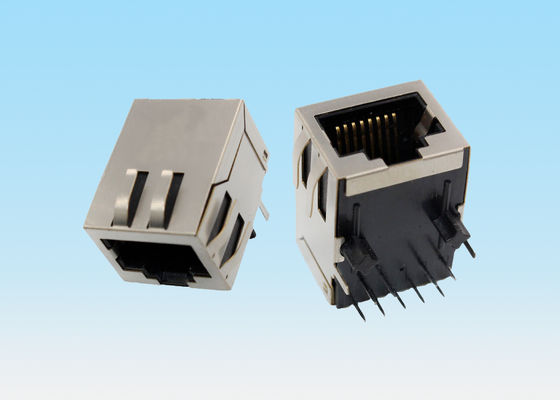

RJ45 Jack Connector 8P Without LED Light 90 Degree Orientation For 1G Ethernet
Product details:
| Product name: | DALEE Wire to Wire Connector |
| Secification: | 90 Degree |
| Type : | RJ45 |
| Certification: | ISO9001,UL,ROHS and the latest REACH |
| Pin: | 8 Pin |
| Rated voltage: | 150V AC,DC |
| Contact Resistance: | 30mΩ MAX |
| Current Rating: | 1.5A |
| Withstand Voltage: | 1000V AC/min |
| Insulation Resistance: | 500mΩ/MIN |
| Number of Ports: | 1 X 1 Single Port |
| Application: | Ethernet |
Material :
1) Receptacle Housing: ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0).
2) Contact Wire: Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness phosphor bronze alloy selective gold plating over nickel.
3) Shield: 0.20~0.25mm thickness brass with tin plated.
4) Gold Plating:1u ,3u 6u 15u 30u 50u.
5) RoHS peak wave solder: RoHS peak wave solder temperature rating 260℃±5℃.
6) Operating Temperature: -40℃ - +85 ℃
7) Storage Temperature: -40℃ - +85 ℃
Dalee Connector Main Export Markets : Asia,Africa,South and North America and Europe.
Product Application:
1) Set-top Boxes and video
2) Multifunction printers (MFP)
3) Network interface cards (NIC)
4) Cummunications and network
5) Medical equipment
6) Rear DVR video recorder
7) Automotive products
8) Action camera manual mini sport DV
9) Switch and smart home
10) Power over Ethernet (PoE)
Dalee Connector Advantages:
1, The strong R&D team specialized in connector and model design including ROHS,SGS,ISO9001 and UL certification;
2, One stop service of connectors with high quality and best service after sales;
3, Quality certification ,Strict shipping ,100% tested before the delivery;
4, We can provide diversified products including wire to wire connector,wire to board connector ,Board to Board conncetor and so on ;
Payment term and delivery:
1. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.
2. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.
3. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton.
4. Payment term: 100% T/T in advance before production.
5. Payment way: T/T, Paypal , Western Union or others method.
