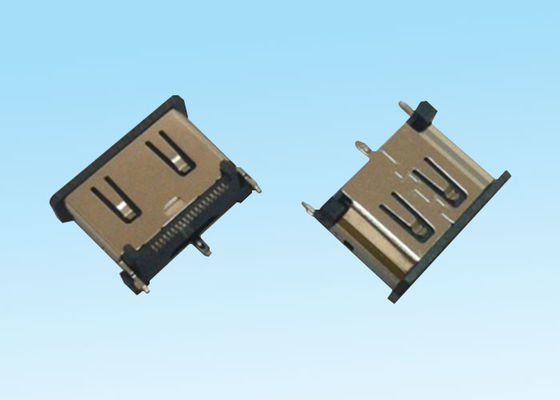

HD 1080P Video HDMI Cable Connector A Type Vertical Female 19 Pin SMD SMT

HD 1080P Video HDMI Cable Connector A Type Vertical Female 19 Pin SMD SMT
HD 1080P Video HDMI Cable Connector A Type Vertical Female 19 Pin SMD SMT

Large Image :  HD 1080P Video HDMI Cable Connector A Type Vertical Female 19 Pin SMD SMT

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: DL50010905

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PE bag, Tube, Volume
Delivery Time: 5-10 working days
Payment Terms: T/T,Western Union
Supply Ability: 10kk/ month
Detailed Product Description
Type: DIP Gender: Femalle
Insertion Force: 44.1 N/ MAX Contact Resistance: 10mΩ MAX
Life: 8000 Cycles Min Application: Video
High Light:

mini hdmi connector

,

hdmi cord connector

A-Type with Ear Dip Female HDMI Connectors 19 Pin used in DVR video recorder

Product details:

Product name:DALEE HDMI Cable Connector
Secification:DIP
Type :HDMI-A
Gender:Female
Certification:ISO9001,UL,ROHS and the latest REACH
Pin:19 Pin
Rated voltage:40 V
Rated Current:0.5 A
Contact Resistance:10mΩ MAX
Insulation Resistance(unmated):100mΩ/MIN AT 500 VDC
Insulation Resistance(mated):10mΩ/MIN AT 150 VDC
Insertion Force:44.1 N/ MAX
Extroction Force:5 N/MIN, 25N/ MAX
Life :8000 Cycles min
Business Type:Manufacturer
Application:  video



HDMI Cable Connector Material :
1) Storage Temperature: -20ºC to +85ºC.
2) Operating Temperature: -20ºC to +85ºC.
3) Contact Mating Area Plating Material: Gold 6u/15u/30u/50u.
4)
Gold Plating:1u ,3u 6u 15u 30u 50u.
5) Shield Material: Copper Alloy preplated with Nickel.

Dalee Connector Main Export Markets : Africa,Asia,South and North America and Europe and so on .

HDMI Connectors Application:

1)  Automotive products
2)  Computer notebook
3)  Watch TV boxes
4)  LAN Ethernet and network
5)  Medical equipment
6)  Rear DVR video recorder

Dalee Connector Advantages:​


1, One stop service of connectors with high quality and best service after sales
2, Strict shipping ,100% tested before the delivery.
3, fast delivery,purchasing orders shipped in 3-10 days.
4, Quality certification ,including ROHS,SGS,ISO9001 and UL certification.
5, samples can be provided for free in 1-3 days
6, we also can provide the customized products as the request of clients.

Dalee connectors Test Condition: all tests shall be performed as bellow conditions unless otherwise specified.
Temperature range : +15oC to +35oC
Humidity range: 25% to 85%
Atmospheric Pressure : 86kPa to 106 kPa (860 to 1060 mber)


Payment term and delivery:

1. MOQ:1000pcs.
2. Trade Terms: FOB Shenzhen or EXW.
3. Payment term: 100% T/T in advance before production.
4. Payment way: T/T, Paypal , Western Union or others method.
5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.
6. Delivery Time: 3-15 working days after order confirmed and the payment received.

Frequently Asked Question:

Q: How To Order?
A: 1,please tell us what model and quantity you need;
2, then we will make a PI for you to confirm the order details;
3, when we confirmed everything, can arrange the payment;
4, finally we deliver the goods within the stipulated time.
Q: When can we get the reply?
A: Any inquiries will be replied within 24 hours.
Q: What’s your payment term?
A: We usually accept T/T as the main payment term, and other payments can also be negotiated
Q: How to contact us?
A: Send your Inquiry Details in the Below, Click "Contact now" . Free sample and best answers are waiting for you.
Q:How about your your delivery time ?
A:  It Usually is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
