Product Details:
Payment & Shipping Terms:
|
| Type: | IPEX Connector | Gender: | Female |
|---|---|---|---|
| Generation: | Three | Operating Temprature: | -40℃ - +85 ℃ |
| Applicable Frequency: | DC~6 GHz | Application: | Routers |
| High Light: | coaxial cable connectors,coaxial power connector |
||

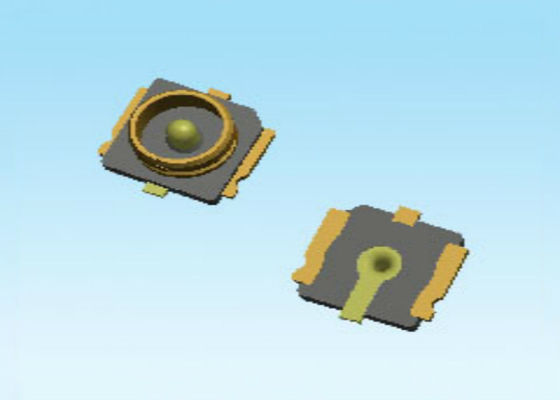

Female SMT Type IPX High Power RF Connector rf termination load for WiFi Routers
Product Details:
| Product name: | DALEE RF Connector |
| Secification: | three generation |
| Type : |
Female |
| Certification: | ISO9001,UL,ROHS and the latest REACH |
| Voltage Rating: | 60 VAC |
| Operating Temprature: | -40℃ - +85 ℃ |
| Nominal Characteristic Impedance: | 50 ohm |
| Applicable Frequency: | DC~6 GHz |
| Vspr: | 1.3 MAX.(DC~3GHz). 1.5 MAX.(3~6GHz) |
| Contact plating : | 1u’’/1.5u’’ |
| Grounded plating: | 50u’’ MIN.Nickel underplating |
| Application: | Routers |
Product Drawing:
RF Connectors Application:
1) WiFi Antenna
2) Hard Drive HDD
3) Signal Booster
4) Radio
5) RF coaxial coax
Payment term and delivery:
1. MOQ:1000pcs.
2. Trade Terms: FOB Shenzhen or EXW.
3. Payment term: 100% T/T in advance before production.
4. Payment way: T/T, Paypal , Western Union or others method.
5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.
Dalee Connector Advantages:
1, One stop service of connectors with high quality and best service after sales .
2, Strong R&D team specialized in connector and model design.
3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification.
4, More than 10 year's experience in the electronic business.
5, Strict shipping ,100% tested before the delivery
6, we also can provide the customized products as the request of clients
7, fast delivery,purchasing orders shipped in 3-10 days
