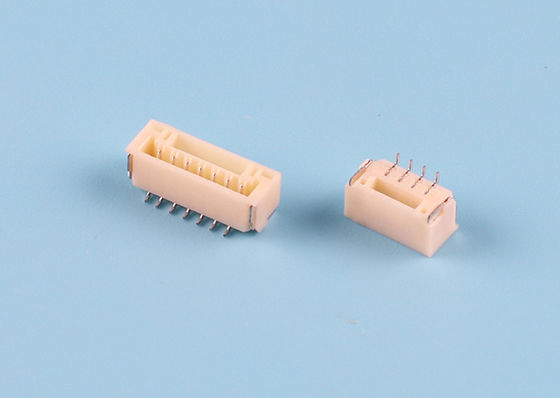

UL94V-0 DIP SMT 2.0mm Pitch Wire Clamp Connector

UL94V-0 DIP SMT 2.0mm Pitch Wire Clamp Connector
UL94V-0 DIP SMT 2.0mm Pitch Wire Clamp Connector

Large Image :  UL94V-0 DIP SMT 2.0mm Pitch Wire Clamp Connector

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: 5001-WF0020-XXRL

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: Inner packing:Tube/Reel 。 Outter packing:Standard export carton
Delivery Time: 5-7 working days
Payment Terms: T/T, L/C
Supply Ability: 1000K/month
Detailed Product Description
Voltage Rating (max): 250V AC/DC Working Temperature: -25°C-+85°C
Colour: Cream-coloured PIN: 2~ 20pin
Pitch: 1.5 Mm Contact Resistance: ≦20mΩ
Housing Material: (Nylon66)UL94V-0 Applicable Wires: AWG30#-24#
High Light:

2.0mm Pitch Wire Clamp Connector


UL94V-0 Wire Clamp Connector


SMT DIP Wire To Board Connector

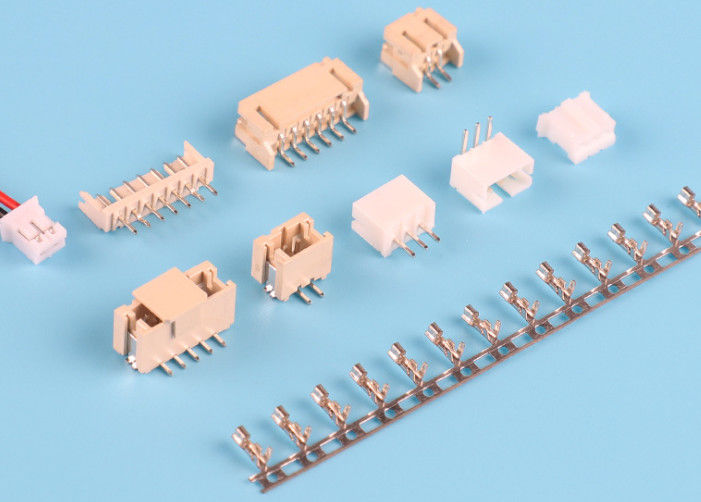

PH2.0mm pitch electrical wire clamp connector ,wire to board power connector / DIP and SMT contact types



Dalee electronic is wire to board connector manufacturer , our wire to board connectors include the 0.8/1.0/1.5/2.0/2.54 mm pitch , the pins from 2


to 15 pins , Widely used in PCB boards .




Housing: LCP, White, Flammability Rating(UL94V-0)

Actuator: LCP,Black,Flammability Rating(UL94V-0)

Terminal:Phosphor Bronze

Fitting Nail: Phosphor Bronze



Product Details:


Product name: DALEE Connector
Secification: 2.0mm pitch
Type:  SMT/DIP
Certification: ISO9001,UL,ROHS and the latest REACH
Current Rating: 1.0A AC/DC
Withstand Voltage : 500 V AC/minute
Operating Temprature: -25 ℃ ~ +85 ℃
Insulation Resistance 1000V AC(rms)
Contact Resistance: 20MΩ max
Applicable Wire:   AWG30#-24#




UL94V-0 DIP SMT 2.0mm Pitch Wire Clamp Connector 0



Product Application:


Our connectors  are widely applied tocusumer electronics, cummunications industry , military industry ,

automotive filed, medical equipment , data module and so on .



Competitive Advantages:


1,10 year's experience in the electronic business


2,Strong R&D team specialized in connector and model design


3,Quality certification ,including ROHS,SGS,ISO9001 and UL certification


4,Strict shipping ,100% tested before delivery


5,Fast delivery,purchasing orders shipped in 3-10 days


6,Samples can be provided for free in 1-3 days



Dalee Main Export Markets : Asia,Africa,South and North America and Europe .



Payment term and delivery


1. MOQ:1000pcs.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

6. Delivery Time: 3-15 working days after order confirmed and the payment received.

7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.

8. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton.
