Professional Connector Manufacturer
Product Details:
Payment & Shipping Terms:
|
| LED: | Green And Yellow | Type: | DIP |
|---|---|---|---|
| Number Of Ports: | Single Port | Withstand Voltage: | 1000V AC/min |
| Performance Speed: | 100 BASE-T | Application: | Printed Circuit Board |

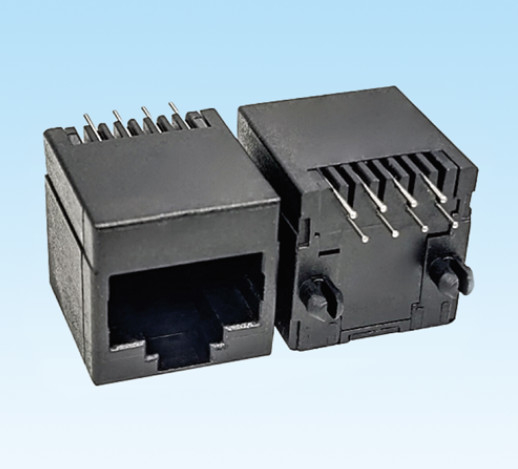

DALEE RJ45 network socket without light, 180 degree direct insertion
Product details:
| Product name: | DALEE RJ45 Connector |
| Secification: | DIP |
| Type : | RJ45 |
| Certification: | ISO9001,UL,ROHS and the latest REACH |
| Pin: | 8 Pin |
| Rated voltage: | 150V AC,DC |
| Contact Resistance: | 30mΩ MAX |
| Current Rating: | 1.5A |
| Withstand Voltage: | 1000V AC/min |
| Insulation Resistance: | 500mΩ/MIN |
| Number of Ports: | Single Port |
| Application: | Network products and Set-top boxes |
RJ 45 Jack Connector Material :
1) Solder Tail Contact Plating Material: Tin-Lead over Nickel.
2) Shield Material: Copper Alloy preplated with Nickel.
3) Gold Plating:1u ,3u 6u 15u 30u 50u.
4) Connector Type :Connector component
5) Contact Mating Area Plating Material: Gold 6u/15u/30u/50u.
Dalee Connector Main Export Markets : Asia,Africa,South and North America and Europe and so on .
RJ 45 Connectors Application:
1) Printed Circuit Board .
2) Cummunications equipment
3) LAN Ethernet and network
4) Rear DVR video recorder
5) Medical equipment
6) Automotive products
Dalee Customized Product Services:
1) With or without LED light.
2) LED color can be green, yellow, orange, red and so on.
3) 90 ° or 180 ° Orientation such as Side Entry or Top Entry.
4) Contact Finish can be with 6u", 15u", 30u", 50u" gold plating.
5) Different size, Different Color, With or without Transformer.
6) Single Port or Multiple Port, Ganged structure or Stacked Structure.
7) With or without POE function.
Dalee Connector Advantages:
1, We can provide diversified products including fpc cable connector,RF connector ,wafer conncetor and so on ;
2, The strong R&D team specialized in connector and model design .
3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification.
4, Strict shipping ,100% tested before the delivery;
Payment term and delivery:
1. Delivery Time: 3-15 working days after order confirmed and the payment received
2. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.
3. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.
4. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton.
5. Payment term: 100% T/T in advance before production.
Frequently Asked Question:
Q1: When can we get the reply?
A: Any inquiries will be replied within 24 hours.
Q2: How To Order?
A: 1,please tell us what model and quantity you need;
2, then we will make a PI for you to confirm the order details;
3, when we confirmed everything, can arrange the payment;
4, finally we deliver the goods within the stipulated time.
Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: What’s your payment term?
A: We usually accept T/T as the main payment term, and other payments can also be negotiated.
