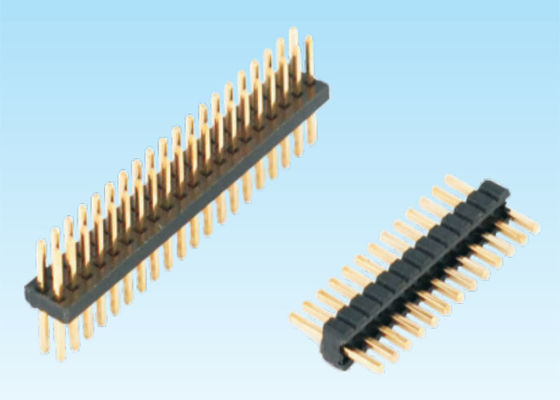

1.27mm Pitch Multi Pin Connector DIP Type 600V AC/Min Withstand Voltage

Certification
China Dalee Electronic Co., Ltd. certification
China Dalee Electronic Co., Ltd. certification
We have cooperated with Dalee company about two years. They are professional with excellent quality and best service. Thank you very much.

—— Matthew Cornish

Better price and high quality, this helped me a lot. Timely booking, satisfactory service and full support. I am glad to work with you.

—— Daniel Reisfeld

Dalee company have provided kinds of connectors with high quality and timely delivery. I like them very much, and they have became our main connector supplier in China.

—— Mike Mcmaster

I'm Online Chat Now

1.27mm Pitch Multi Pin Connector DIP Type 600V AC/Min Withstand Voltage

1.27mm Pitch Multi Pin Connector DIP Type 600V AC/Min Withstand Voltage
1.27mm Pitch Multi Pin Connector DIP Type 600V AC/Min Withstand Voltage

Large Image :  1.27mm Pitch Multi Pin Connector DIP Type 600V AC/Min Withstand Voltage

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: DL50010516

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: PE bag, Tube, Volume
Delivery Time: 5-10 working days
Payment Terms: T/T, L/C
Supply Ability: 1000K/month
Detailed Product Description
Family Name: Pin Header Connector Operating Temprature: -40 ℃ - +105 ℃
Insulation Resistance: 1000M Min Contact Plating: Gold Or Tin Over 50μ "Ni
High Light:

pcb header connector

,

single row header connector

1.27mm Pitch H=1.0 /1.7 /2.0 /2.5mm Single Plastic Dual/Single Row DIP Type Pin Header Connector





1.27mm Pitch Multi Pin Connector DIP Type 600V AC/Min Withstand Voltage 0





Product Details:



Product name: DALEE connector
Secification: 1.27mm /2.0mm Pitch
Type: Single Plastic Dual /single Row DIP
Certification: ISO9001,UL,ROHS and the latest REACH
Current Rating: 3.0 AMP
Withstand Voltage : 600 V AC/minute
Operating Temprature: -40 ℃ - +105 ℃
Insulation Resistance 1000M min
 Contact Resistance:  30m max
Contact material: Copper Alloy
Contact Plating : Gold or Tin over 50μ  "Ni
Standard : PBT





Drawing:



1.27mm Pitch Multi Pin Connector DIP Type 600V AC/Min Withstand Voltage 1



Product Application: Our connector widely apply cusumer electronics,  cummunications industry ,automotive filed, medical equipment , military industry ,data module and so on .





Competitive Advantages:



1, 10 year's experience in the electronic business

2, trict shipping ,100% tested before delivery

3, trong R&D team specialized in connector and model design

4, uality certification ,including ROHS,SGS,ISO9001 and UL certification

5, amples can be provided for free in 1-3 days

6, ast delivery,purchasing orders shipped in 3-10 days





Payment term and delivery



1. MOQ:1000pcs.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

6. Delivery Time: 3-15 working days after order confirmed and the payment received.

7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.

8. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton.

1.27mm Pitch Multi Pin Connector DIP Type 600V AC/Min Withstand Voltage 2





FAQ:



Q1: Are you trading company or manufacturer ?

A: We are manufacturer.

Q2: How To Order?

A: 1,please tell us what model and quantity you need;

2, then we will make a PI for you to confirm the order details;

3, when we confirmed everything, can arrange the payment;

4, finally we deliver the goods within the stipulated time.

Q3: When can we get the reply?

A: Any inquiries will be replied within 24 hours.

Q4: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q5: What’s the delivery time?

A: It usually takes about 7-14 days to produce the products.

Q6: What’s your payment term?

A: We usually accept T/T as the main payment term, and other payments can also be negotiated.

Q7: Quality problems?

A: If there is any quality problem or question, we could offer technical support or return service

Q8: How to contact us.

A: Send your Inquiry Details in the Below, Click "Contact now" . Free sample and best answers are waiting for you.



If you can't find the products from our web, pls send an inquiry to us,even if we can't make ,we can help you to find the same product with good quality and low price.
