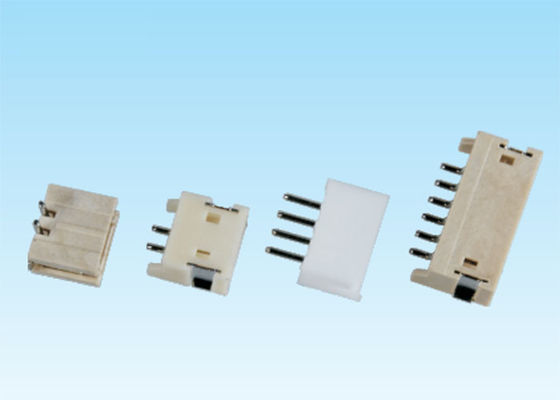

Dalee Professional Wafer Electrical Connectors AB Type 1.5mm Pitch Single Row Type

Dalee Professional Wafer Electrical Connectors AB Type 1.5mm Pitch Single Row Type
Dalee Professional Wafer Electrical Connectors AB Type 1.5mm Pitch Single Row Type

Large Image :  Dalee Professional Wafer Electrical Connectors AB Type 1.5mm Pitch Single Row Type

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: DL50010409

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: PE bag, Tube, Volume
Delivery Time: 5-7 working days
Payment Terms: T/T, L/C
Supply Ability: 1000K/month
Detailed Product Description
Material: LCP,Phosphor Bronze,Brass Voltage Rating: 50V AC\DC
Type: AB PIN: 2pin ~ 12pin
Pitch: 1.5 Mm Application: PCB Board
High Light:

electrical wire connectors

,

wafer power connector

AB Type 1.5mm Pitch Single Row Type 02 to 12 Contacts Dalee Professional Wafer Connector





Product Details:



Product name: DALEE Connector
Secification: 1.5mm Pitch
Type: AB
Certification: ISO9001,UL,ROHS and the latest REACH
Current Rating: 1.0 A AC/DC(AWG #28)
Withstand Voltage : 500 V AC/minute
Operating Temprature: -25 ℃ ~ +85 ℃
Insulation Resistance 100 MΩ min
Contact Resistance: 20MΩ max
Applicable Wire: #32 ~ # 28





Drawing:



Dalee Professional Wafer Electrical Connectors AB Type 1.5mm Pitch Single Row Type 0



Product Application: Our connectors  are widely applied to  cusumer electronics, military industry ,automotive filed, medical equipment , cummunications industry ,data module and so on .

Dalee Professional Wafer Electrical Connectors AB Type 1.5mm Pitch Single Row Type 1



Competitive Advantages:



1,10 year's experience in the electronic business



2,Strong R&D team specialized in connector and model design



3,Quality certification ,including ROHS,SGS,ISO9001 and UL certification



4,Strict shipping ,100% tested before delivery



5,Fast delivery,purchasing orders shipped in 3-10 days



6,Samples can be provided for free in 1-3 days





Dalee Main Export Markets : Asia,Africa,South and North America and Europe .





Payment term and delivery



1. MOQ:1000pcs.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

6. Delivery Time: 3-15 working days after order confirmed and the payment received.

7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.

8. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton.

2.54mm Pitch  Single Plastic Dual/ Single Row DIP Type Pin Header Connector H=1.0/1.5/ 1.7/2.0/2.5/3.3mm
