Professional Connector Manufacturer
Product Details:
Payment & Shipping Terms:
|
| Gender: | Male And Female | Color: | White |
|---|---|---|---|
| Type: | Wire To Wire | Material: | Thermoplastic , UL94 V-0 |
| Withstand Voltage: | 250V AC/min | Rated Voltage: | 50V AC,DC |
| High Light: | male female wire connectors,quick connect wire connectors |
||

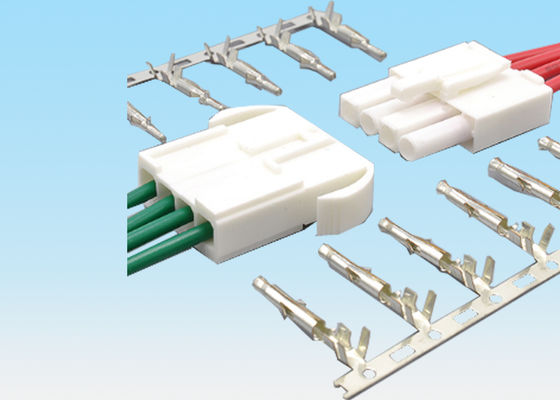

Wire To Wire Connector 1.25mm , 2Pin ~12Pin Mating Housing and Terminal Male and Female
Product details:
| Product name: | DALEE Wire to Wire Connector |
| Secification: | 1.25mm Pitch |
| Type : | Wire To Wire |
| Certification: | ISO9001,UL,ROHS and the latest REACH |
| Gender: | Male & Female |
| Rated voltage: | 50V AC,DC |
| Contact Resistance: | 20mΩ MAX |
| Current Rating: | 1.0A |
| Withstand Voltage: | 250V AC/min |
| Insulation Resistance: | 500mΩ/MIN |
| Operating Temprature: | -25℃ - +85 ℃ |
| Application: | Automobile/ Consumer electronic |
Material Specification:
1) Receptacle Housing: UL94 V-O.
2) Plug Housing: UL94 V-0.
3) Terminal : phosphor Bronze,Tin Plated
Product Application: Dalee connectors are widely applied to lots of industries, such as unmanned aerial vehicle, rear DVR video recorder , cummunications industry ,computer peripheral products ,cusumer electronics, action camera manual mini sport DV, military industry ,automotive filed, medical equipment and so on .
Competitive Advantages:
1, More than 10 year's experience in the electronic business.
2, Strong R&D team specialized in connector and model design.
3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification.
4, One stop service of connectors with high quality and best service after sales .
5, Strict shipping ,100% tested before the delivery
6, we also can provide the customized products as the request of clients
7, samples can be provided for free in 1-3 days
8, fast delivery,purchasing orders shipped in 3-10 days
Payment term and delivery:
1. MOQ:1000pcs.
2. Trade Terms: FOB Shenzhen or EXW.
3. Payment term: 100% T/T in advance before production.
4. Payment way: T/T, Paypal , Western Union or others method.
5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.
6. Delivery Time: 3-15 working days after order confirmed and the payment received.
7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.
8. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton.
