Miniature Wire To Wire Connector 4.2mm Male Female Wire Connectors 2 - 16 Pin

Miniature Wire To Wire Connector 4.2mm Male Female Wire Connectors 2 - 16 Pin
Miniature Wire To Wire Connector 4.2mm Male Female Wire Connectors 2 - 16 Pin

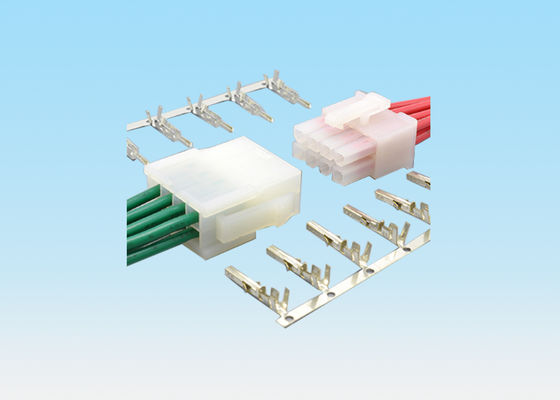

Large Image :  Miniature Wire To Wire Connector 4.2mm Male Female Wire Connectors 2 - 16 Pin

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: DL50011305

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PE bag, Tube, Volume
Delivery Time: 5-10 working days
Payment Terms: T/T,Western Union
Supply Ability: 10kk/ month
Detailed Product Description
Pitch: 4.2mm Color: White
Gender: Male Or Female Operating Temprature: -25℃ - +85 ℃
Application: PCB Board Poles: 2-16P
High Light:

male female wire connectors

,

electrical wire connectors

Miniature Wire To Wire Type Connectors 4.2mm Male Female Wire Connectors 2Pin ~16Pin





Product details:



Product name: DALEE Wire to Wire  Connector
Secification: 4.2mm Pitch
Type :  Wire To Wire
Certification: ISO9001,UL,ROHS and the latest REACH
Gender: Male & Female
Rated voltage: 50V AC,DC
Contact Resistance: 20mΩ MAX
Current Rating: 1.0A
Withstand Voltage: 250V AC/min
Insulation Resistance: 500mΩ/MIN
Operating Temprature: -25℃ - +85 ℃
Application: cusumer electronics





Material Specification:



1)   Receptacle Housing: UL94 V-O.

2)   Plug Housing:   UL94 V-0.

3)   Terminal : phosphor Bronze,Tin Plated





Product Funcation:



1)  Dalee connectors can supply soldering pins in printed circuit board;

2)  The terminal which is isolated completely can prevent damage to the terminal during processing and interpolation;

3)  Our connectors can provide built-in self-tuning function;

4)  We also can provide different choices for customers to meet vide options to meet multiple application needs;

5)  Dalee connectors can povide strong and reliable connections.





Product Application: Dalee connectors are widely applied to lots of industries, such as cummunications industry ,action camera manual mini sport DV, military industry ,unmanned aerial vehicle, rear DVR video recorder ,computer peripheral products ,cusumer electronics, automotive filed, medical equipment and so on.





Competitive Advantages:



1, More than 10 year's experience in the electronic business.

2, Strong R&D team specialized in connector and model design.

3, samples can be provided for free in 1-3 days

4, Strict shipping ,100% tested before the delivery

5, fast delivery,purchasing orders shipped in 3-10 days





Payment term and delivery:



1. MOQ:1000pcs.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.

5. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton.
