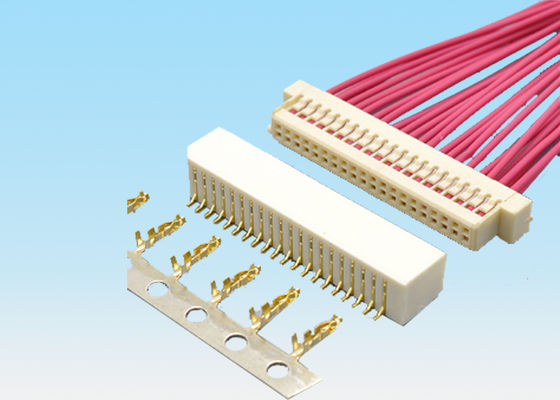

JST 1.0 Double Row Thin Pcb Wire To Board Connector 1.0mm Pitch 2 - 25 Pin

JST 1.0 Double Row Thin Pcb Wire To Board Connector 1.0mm Pitch 2 - 25 Pin
JST 1.0 Double Row Thin Pcb Wire To Board Connector 1.0mm Pitch 2 - 25 Pin

Large Image :  JST 1.0 Double Row Thin Pcb Wire To Board Connector 1.0mm Pitch 2 - 25 Pin

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: DL50011404

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PE bag, Tube, Volume
Delivery Time: 5-10 working days
Payment Terms: T/T,Western Union
Supply Ability: 10kk/ month
Detailed Product Description
Pitch: 1.0mm Pin: 2-25 P
Insulation Resistance: 500mΩ/MIN Withstand Voltage: 250V AC/min
Type: Super Thin Application: PCB Board
High Light:

wire to board terminal

,

wire to board edge connector

JST 1.0 Double Row Thin pcb wire to board connectors 1.0mm Pitch 2-25 Pin with unmanned aerial vehicle





Product details:



Product name: DALEE Wire to Wire  Connector
Secification: 1.0mm Pitch
Type :  Wire To Board
Certification: ISO9001,UL,ROHS and the latest REACH
Type of outline: Double Row,super thin
Rated voltage: 50V AC,DC
Contact Resistance: 20mΩ MAX
Current Rating: 1.0A
Withstand Voltage: 250V AC/min
Insulation Resistance: 500mΩ/MIN
Operating Temprature: -25℃ - +85 ℃
Application: automotive filed





Material Specification:



1)   Receptacle Housing: UL94 V-O.

2)   Plug Housing:   UL94 V-0.

3)   Terminal : phosphor Bronze,Tin Plated





Product Funcation:



1)   The terminal which is isolated completely can prevent damage to the terminal during processing and interpolation;

2)   The terminal adopts a centralized node approach and has a high degree of contact reliability;

3)   Dalee connectors can reduce assembly errors which will cause terminal retraction;

4)   Our connectors can provide built-in self-tuning function;

5)   Dalee connectors can povide strong and reliable connections;





Dalee Main Export Markets : Asia,Africa,South and North America and Europe.



Product Application: Dalee connectors are widely applied to lots of industries, such as medical equipment , rear DVR video recorder , computer peripheral products ,military industry ,unmanned aerial vehicle, cummunications industry , action camera manual mini sport DV, cusumer electronics, automotive filed and so on .





Competitive Advantages:​  we can provide diversified products including wire to wire connector,wire to board connector ,Board to Board conncetor and so on ; Strong R&D team specialized in connector and model design including ROHS,SGS,ISO9001 and UL certification;  More than 10 year's experience in the electronic business; fast delivery,purchasing orders shipped in 3-10 days​; Quality certification ,Strict shipping ,100% tested before the delivery .





Payment term and delivery:



1. Trade Terms: FOB Shenzhen or EXW.

2. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton.

3. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs

4. Payment way: T/T, Paypal , Western Union or others method..

5. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.
