1.25mm Pitch Wire To Board Terminal Connector 2 - 16 Pin UL94 V-0 Plug Housing Molex51021

1.25mm Pitch Wire To Board Terminal Connector 2 - 16 Pin UL94 V-0 Plug Housing Molex51021
1.25mm Pitch Wire To Board Terminal Connector 2 - 16 Pin UL94 V-0 Plug Housing Molex51021

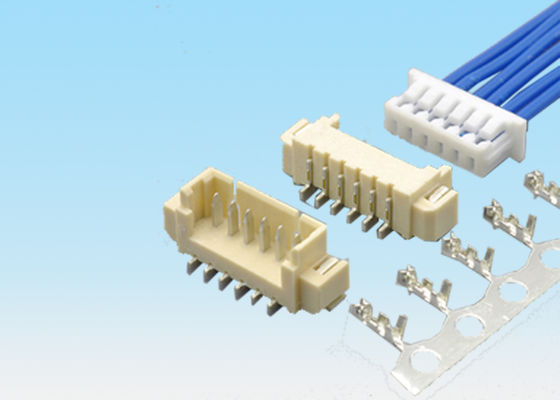

Large Image :  1.25mm Pitch Wire To Board Terminal Connector 2 - 16 Pin UL94 V-0 Plug Housing Molex51021

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS, SGS, ISO9001
Model Number: DL50011407

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PE bag, Tube, Volume
Delivery Time: 5-10 working days
Payment Terms: T/T,Western Union
Supply Ability: 10kk/ month
Detailed Product Description
Pitch: 1.25mm Pin: 2-16 P
Rated Voltage: 50V AC,DC Operating Temprature: -25℃ - +85 ℃
MOQ: 1000 Pcs Application: Consumer Electronics
High Light:

circuit board power connectors

,

wire to board edge connector

Wire To Board terminal 1.25mm Pitch connector 2-16 Pin electronic wire connectors Molex51021





Product details:



Product name: DALEE Wire to Wire  Connector
Secification: 1.25mm Pitch
Type : Wire To Board
Certification: ISO9001,UL,ROHS and the latest REACH
Pin: 2-16 Pin
Rated voltage: 50V AC,DC
Contact Resistance: 20mΩ MAX
Current Rating: 1.0A
Withstand Voltage: 250V AC/min
Insulation Resistance: 500mΩ/MIN
Operating Temprature: -25℃ - +85 ℃
Application: Consumer electronics





Material Specification:



1)   Receptacle Housing: UL94 V-O.

2)   Plug Housing:   UL94 V-0.

3)   Terminal : phosphor Bronze,Tin Plated





Product Funcation:



1) Dalee connectors have the LCP joint which can wthstand high temperature and welding process withsatanding 260 infrared reflux;

2) The terminal which is isolated completely can prevent damage to the terminal during processing and interpolation;

3) Dalee connectors can supply soldering pins in printed circuit board;

4) Our connectors can offer joint retention and stress removal options;

5) Dalee connectors can reduce the short circuit of debris to the maximum.





Dalee Main Export Markets : Asia,Africa,South and North America and Europe.



Product Application: Dalee connectors are widely applied to lots of industries, such as computer peripheral products ,military industry , cummunications industry , unmanned aerial vehicle, medical equipment , rear DVR video recorder , cusumer electronics, automotive filed, action camera manual mini sport DV and so on .





Competitive Advantages:​



 1, Dalee company have the  strong R&D team specialized in connector and model design including  ROHS,SGS,ISO9001 and UL certification

 2, we can provide diversified products including wire to wire connector,wire to board connector ,Board to Board conncetor and so on ;

 3, Quality certification ,Strict shipping ,100% tested before the delivery,   More than 10 year's experience in the electronic business;

 4, fast delivery,purchasing orders shipped in 3-10 days ​; Strong R&D team specialized in connector and model design including ROHS,SGS,ISO9001 and UL certification.





Why choose us ?



1. Our production techonlogy and raw material are in conformity with ROHS environment directive of EU.

2. More than ten years experience of developing, selling electronic connector products such as FFC/FPC connectors, FFC flat cable, SMT wafer series / wire to board connector,SD/TF/CF/SIM card connector and USB connector.

3. Manage company constantly improves itself with the policy of "human-oriented" to create a large number of experts in technology.

4. After-sale service: If the product of any quality problems, if it is our responsibility, then returned; if it is used improperly, then provide solution.
