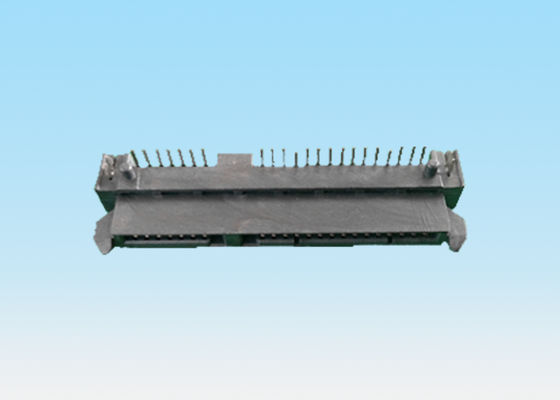

22 Pin SATA Plug Connector Female Solder Type Connector With RoHS Compliant

22 Pin SATA Plug Connector Female Solder Type Connector With RoHS Compliant
22 Pin SATA Plug Connector Female Solder Type Connector With RoHS Compliant

Large Image :  22 Pin SATA Plug Connector Female Solder Type Connector With RoHS Compliant

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: DL50011605

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PE bag, Tube, Volume
Delivery Time: 5-10 working days
Payment Terms: T/T,Western Union
Supply Ability: 10kk/ month
Detailed Product Description
Pin: 22P 7pin 15pin Gender: Male, Female/ Male Connector
Experence: More Than 10 Years Operating Temprature: -25 ℃ - +80 ℃
Current Rating: 1.0A Colour: Black
High Light:

sata power connector


sata plug connector

 22 Pin SATA Power Connector Female Solder type Connector with RoHS Compliant

Product details:


Product name: DALEE SATA Cable Connector
Secification: SMT
Type : SATA
Certification: ISO9001,UL,ROHS and the latest REACH
Pin: 22 Pin
Rated voltage: 150V AC,DC
Contact Resistance: 30mΩ MAX
Current Rating: 1.0A
Withstand Voltage: 1000V AC/min
Insulation Resistance: 500mΩ/MIN
 Shell: stainless, pickling
Application: Printed circuit board

SATA Cable Connector Material :


1) solder tail: Tin 160u" , selectived gold on contact area plating.
2) Storage Temperature: -25ºC to +85ºC
3) Material: LCP UL94-V0.

4) Operating Temperature: -25ºC to +85ºC

5) Contact Material : Copper Alloy preplated with Nickel.

Dalee Connector Main Export Markets :
Africa,Asia,South and North America and Europe and so on .



SATA Connectors Application:
1)  Printed circuit board
2)  Computer notebook
3)  Automotive products
4)   Hard Drive HDD
5)  Medical equipment

6)  Rear DVR video recorder


Dalee Connector Advantages:​

1, Strict shipping ,100% tested before the delivery.

2, More than 10 year's experience in the electronic business.

3, samples can be provided for free in 1-3 days.

4, Quality certification ,including ROHS,SGS,ISO9001 and UL certification.

5, One stop service of connectors with high quality and best service after sales .

6, we also can provide the customized products as the request of clients.

Payment term and delivery:


1. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

2. Trade Terms: FOB Shenzhen or EXW.

3.  MOQ:1000pcs.

4. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.

5.  Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton.



Frequently Asked Question:


Q: How to place an Order?

A: 1,please tell us what model and quantity you need;

2, then we will make a PI for you to confirm the order details;

3, when we confirmed everything, can arrange the payment;

4, finally we deliver the goods within the stipulated time.

Q: When can we get the reply?

A: Any inquiries will be replied within 24 hours.

Q: What’s your payment term?

A: We usually accept T/T as the main payment term, and other payments can also be negotiated

Q: How about samples ?

A:Samples is free,but you need to pay the freight charge.Please contact us for details.

Q: How to contact us?

A: Send your Inquiry Details in the Below, Click "Contact now" . Free sample and best answers are waiting for you.
