Product Details:
Payment & Shipping Terms:
|
Pin: | 7+15 P | Gender: | Female |
---|---|---|---|
Colour: | Black/ Customized Colour | Insulation Resistance: | 500mΩ/MIN |
Experience: | More Than 10 Years | Application: | HDD |
High Light: | sata signal connector,sata plug connector |

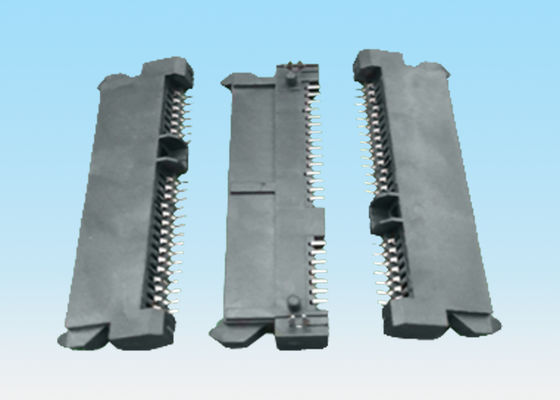

7/15/22Pin SMT DIP PCB SATA Power Socket HDD SATA Connector Material with LCP UL94-V0
Product details:
Product name: | DALEE SATA Cable Connector |
Secification: | SMT |
Type : | SATA |
Certification: | ISO9001,UL,ROHS and the latest REACH |
Pin: | 22 Pin |
Rated voltage: | 150V AC,DC |
Contact Resistance: | 30mΩ MAX |
Current Rating: | 1.0A |
Withstand Voltage: | 1000V AC/min |
Insulation Resistance: | 500mΩ/MIN |
Shell: | stainless, pickling |
Application: | HDD |
SATA Cable Connector Material :
1) Storage Temperature: -25ºC to +85ºC
2) Contact Material : Copper Alloy preplated with Nickel.
3) Material: LCP UL94-V0.
4) Operating Temperature: -25ºC to +85ºC
5) solder tail: Tin 160u" , selectived gold on contact area plating.
Dalee Connector Main Export Markets : Africa,Asia,South and North America and Europe and so on .
SATA Connectors Application:
1) Printed circuit board
2) Hard Drive HDD
3) Automotive products
4) Computer notebook
5) Medical equipment
6) Rear DVR video recorder
Dalee Connector Advantages:
1, More than 10 year's experience in the electronic business.
2, Strong R&D team specialized in connector and model design.
3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification.
4, One stop service of connectors with high quality and best service after sales .
5, Strict shipping ,100% tested before the delivery
6, we also can provide the customized products as the request of clients
7, samples can be provided for free in 1-3 days
8, fast delivery,purchasing orders shipped in 3-10 days
Payment term and delivery:
1. MOQ:1000pcs.
2. Trade Terms: FOB Shenzhen or EXW.
3. Payment term: 100% T/T in advance before production.
4. Payment way: T/T, Paypal , Western Union or others method.
5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.
6. Delivery Time: 3-15 working days after order confirmed and the payment received.
7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.
8. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton.
Frequently Asked Question:
Q: How to place an Order?
A: 1,please tell us what model and quantity you need;
2, then we will make a PI for you to confirm the order details;
3, when we confirmed everything, can arrange the payment;
4, finally we deliver the goods within the stipulated time.
Q: When can we get the reply?
A: Any inquiries will be replied within 24 hours.
Q: What’s your payment term?
A: We usually accept T/T as the main payment term, and other payments can also be negotiated
Q: How about samples ?
A:Samples is free,but you need to pay the freight charge.Please contact us for details.
Q: How to contact us?
A: Send your Inquiry Details in the Below, Click "Contact now" . Free sample and best answers are waiting for you.
