Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Power RF Connectors | Type: | IPEX |
|---|---|---|---|
| Color: | White / Gold | Operating Temprature: | -40℃ - +85 ℃ |
| Applicable Frequency: | DC~6 GHz | Application: | Networking |
| High Light: | coaxial power connector,rf coaxial connector |
||
High Power RF Connectors Surface Mount SMD UFL IPEX IPX Coaxial Connector
Product Details:
| Product name: | DALEE RF Connector |
| Secification: | one generation |
| Type : |
Female |
| Certification: | ISO9001,UL,ROHS and the latest REACH |
| Voltage Rating: | 60 VAC |
| Operating Temprature: | -40℃ - +85 ℃ |
| Nominal Characteristic Impedance: | 50 ohm |
| Applicable Frequency: | DC~6 GHz |
| Vspr: | 1.3 MAX.(DC~3GHz). 1.5 MAX.(3~6GHz) |
| Contact plating : | 1u’’/1.5u’’ |
| Grounded plating: | 50u’’ MIN.Nickel underplating |
| Application: | Routers |
1. Features and benefits:
1. Easy snap-on/snap-off mating
2. Ultra low profile (2.5 mm mating height)
3. Small foot print (3.1mm x 3mm)
4. 100% compatible with Hirose U.FL series
5. Dimension:3.1mm*3mm*1.25mm
2. Technical Parameters:
Frequency Range: 0 - 6GHz
Impedance: 50Ω
Insulation Resistance: 500 MΩ Min
Dielectric Withstanding Voltage: 200V AC/1 Min
Inner Contact Resistance: 20 mΩ Max
Outer Contact Resistance: 10 mΩ Max
Voltage Standing wave Ratio(VSWR): 1.3 Max. ( 0 - 3GHz 1.2Max).
Mechanical Durability: 100 Cycles
Relative Humidity: 95% R.H.Max
Operating Temperature: -40℃~+85℃
3. Application:
1. WLAN
2. Notebook Computers
3. Remote Measuring Equipment
4. Bluetooth
5. GPS
6. Personal Digital Assistant (PDA)
7. Portable Devices

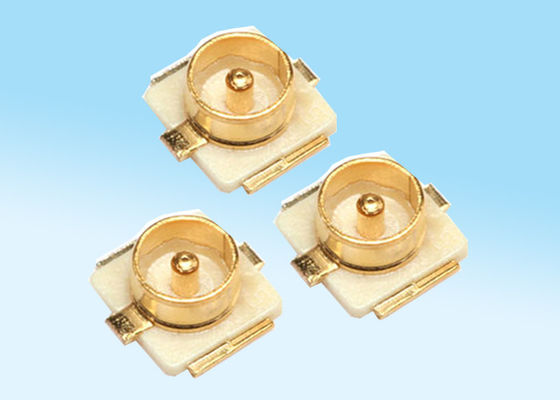

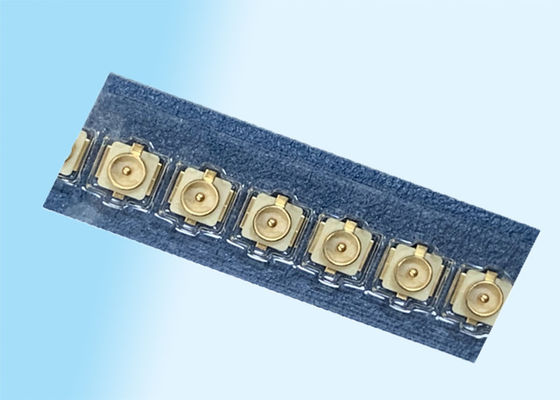

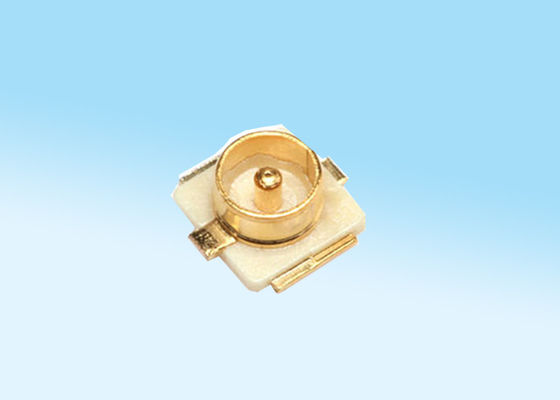

IPEX IPX connector Structure Picture:
Payment term and delivery:
1. MOQ:1000pcs.
2. Trade Terms: FOB Shenzhen or EXW.
3. Payment term: 100% T/T in advance before production.
4. Payment way: T/T, Paypal , Western Union or others method.
5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.
Dalee Connector Advantages:
1, One stop service of connectors with high quality and best service after sales .
2, Strong R&D team specialized in connector and model design.
3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification.
4, More than 10 year's experience in the electronic business.
5, Strict shipping ,100% tested before the delivery
6, we also can provide the customized products as the request of clients
