Professional Connector Manufacturer
Product Details:
Payment & Shipping Terms:
|
| Application: | PCB Board | Material: | Nylon Or PBT (94V-0) |
|---|---|---|---|
| Current Rating: | 1.0 Amps | Insulation Resistance: | 1000 Megchms Min |
| Pitch: | 1.27 | Gender: | Female Header Connector |
| High Light: | female socket connector,female plug connector |
||

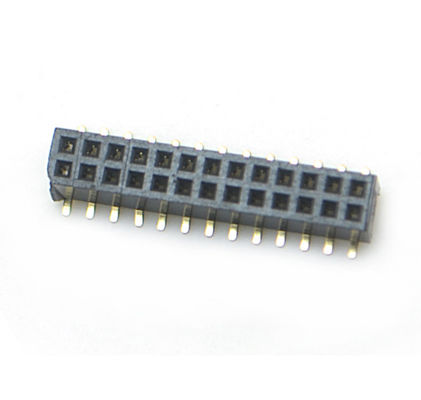

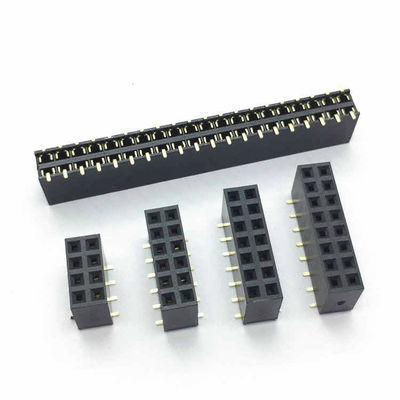

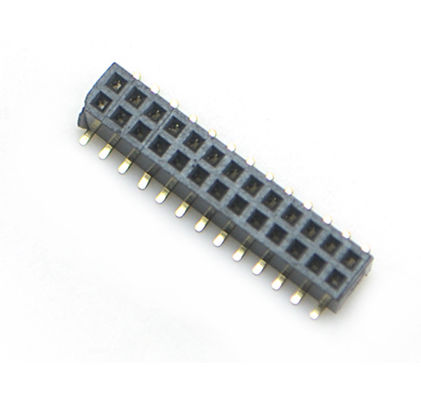

Dalee 1.27mm Female header socket Dual row SMT 2.0 mm high of Plastic
this connector products are available in 0.8x1.2mm (.031"x.047"), 1mm (.039"), 1.27mm (.050"), 2mm (.079")
and 2.54mm (.100") pitch ranges, with options of surface mount or through hole mount types
Product Details:
| Product name: | DALEE Female header connector |
| Secification: | 1.27mm Pitch |
| Type: | SMT |
| Certification: | ISO9001,UL,ROHS and the latest REACH |
| Current Rating: | 1.0 AMP |
| Withstand Voltage : | 500V AC/DC |
| Operating Temprature: | -40 ℃ - +105 ℃ |
| Insulation Resistance | 1000M min |
| Contact Resistance : | 20mΩ Max |
| Insulator Material: | PA9T Black+30％GF UL94V-0 BK |
| Contact Plating: | Au over Ni |
Product Application: these connectors are widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc.. As the most reliable connection plate to plate, wire to board provides.
Competitive Advantages:
1, 10 year's experience in the electronic business
2, Strong R&D team specialized in connector and model design
3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification
4, Strict shipping ,100% tested before delivery
5, Fast delivery,purchasing orders shipped in 3-10 days
6, Samples can be provided for free in 1-3 days
Dalee Main Export Markets : Asia,Africa,South and North America and Europe .
Payment term and delivery
1. MOQ:1000pcs.
2. Trade Terms: FOB Shenzhen or EXW.
3. Payment term: 100% T/T in advance before production.
4. Payment way: T/T, Paypal , Western Union or others method.
5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.
6. Delivery Time: 3-15 working days after order confirmed and the payment received.
7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.
8. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton
Dalee Electronic company is a high-tech company that integrates mold design, development, production, manufacturing, and sales as a professional connector manufacturer. Its main products are: board to board connectors, FFC / FPC flat connectors, SIM/TF/SD card holder, USB/HDMI/type-C socket, wafer connector, needle row mother, SATA and other precision connectors. our production process and raw materials are in line with the EU ROHS environmental protection directive requirements.
