Product Details:
Payment & Shipping Terms:
|
| Application: | Automobile | Material: | Brass / Phosphor Bronze |
|---|---|---|---|
| Withstand Voltage: | 1000V AC/min | Production Process: | Cold Pressing |
| Pitch: | 2.54/1.27/2.0 | Type: | Female |
| Color: | Black | Rated Current: | 1.0 A |
| High Light: | female socket connector,female plug connector |
||

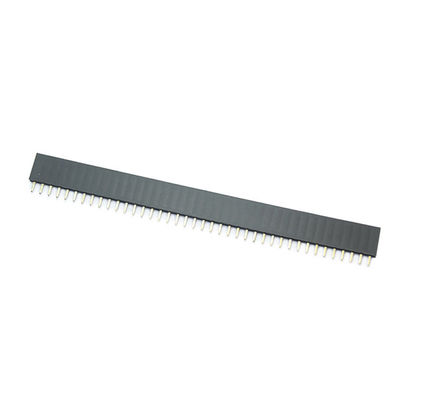

40 pin Female Header Connector strip Single Row Straight DIP for Automobile
Female connector, a type of connector.
Application: This connector is widely used in PCB circuit boards in electronics, electrical appliances, and instruments.
Function: Its function is to act as a bridge between blocked or isolated circuits in a circuit, and take on the task of current or signal transmission. Usually used in conjunction with the pin header to form a board-to-board connection; or used in conjunction with the electronic harness end to form a board-to-wire connection; can also be used independently for board-to-board connection.
Product Details:
| Product name: | DALEE Female header connector |
| Secification: | 2.54 mm Pitch |
| Type: | DIP |
| Certification: | ISO9001,UL,ROHS and the latest REACH |
| Current Rating: | 1.0 AMP |
| Withstand Voltage : | 500V AC/DC |
| Operating Temprature: | -40 ℃ - +105 ℃ |
| Insulation Resistance | 1000M min |
| Contact Resistance : | 20mΩ Max |
| Insulator Material: | PA9T Black+30％GF UL94V-0 BK |
| Contact Plating: | Au over Ni |
Product Name: female header connector
1. features: the use of a wide range of environmental protection fireproof antioxidant strong conductivity
2. material: PA9T/PBT/ brass or phosphor bronze; dielectric materials: plastic UL 94V-0
3. Product application: general are widely used in electronics, electrical appliances, instrument connection device mainly plays the role of a current or signal transmission. Usually with pin supporting the use, composition of board to board connection. Or with electronic wiring harness terminal supporting the use of, constitute the board of line connection.
Row mother classification:
1. The row mother is divided according to the spacing: divided into 0.8, 1.0, 1.27, 2.0, 2.54 spacing.
2. The row mother is divided according to the height of the plastic and whether it has bumps.
The bumps are divided into semi-convex and full-convex.
3. According to the row number of the pin row: divided into single row, double row, 3 row, 4 row, etc.,
the current maximum is only 4 rows.
4. According to the installation method: 180 degrees is represented by S, 90 degrees is represented by W,
and SMT is represented by T.
5. According to whether it needs to be increased or not, it needs to be divided with positioning posts.
There are two kinds of positioning posts, one is internal positioning post and the other is ear positioning post.
Payment term and delivery
1. MOQ:1000pcs.
2. Trade Terms: FOB Shenzhen or EXW.
3. Payment term: 100% T/T in advance before production.
4. Payment way: T/T, Paypal , Western Union or others method.
5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.
6. Delivery Time: 3-15 working days after order confirmed and the payment received.
7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.
8. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton
Dalee Electronic company is a high-tech company that integrates mold design, development, production, manufacturing, and sales as a professional connector manufacturer. Its main products are: board to board connectors, FFC / FPC flat connectors, SIM/TF/SD card holder, USB/HDMI/type-C socket, wafer connector, needle row mother, SATA and other precision connectors. our production process and raw materials are in line with the EU ROHS environmental protection directive requirements.
