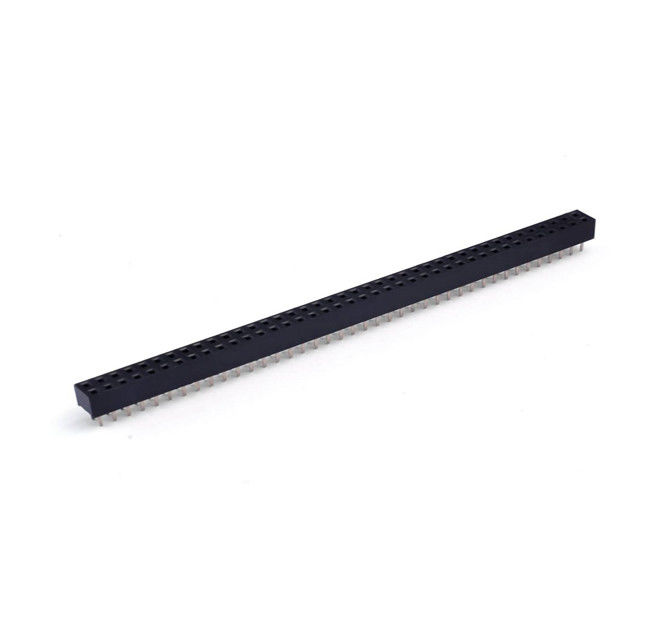

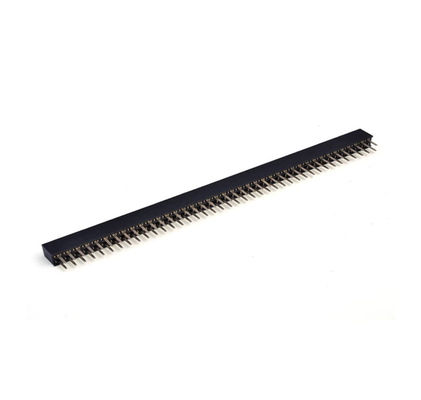

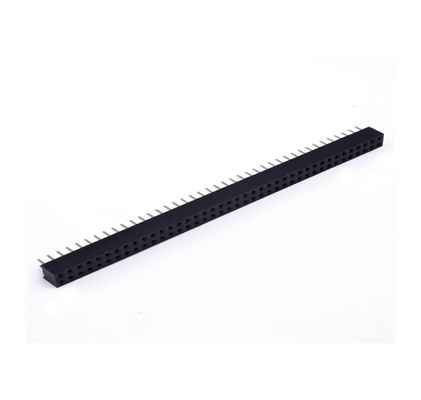

1.27 Dual Row 90 Degree Female Header Connector 1.0 AMP

1.27 Dual Row 90 Degree Female Header Connector 1.0 AMP
1.27 Dual Row 90 Degree Female Header Connector 1.0 AMP

Large Image :  1.27 Dual Row 90 Degree Female Header Connector 1.0 AMP

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: DL50010617

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: Tube, Volume
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000K/month
Detailed Product Description
Application: PCB Plastic Material: PBT / PA6T / PA9T / LCP
Withstand Voltage: 1000V AC/min Color: Black
Plastic Height: 3.4 / 4.3 / 4.6 / 6.35mm Type: Double Row
Rated Current: 1.5A AC / DC Pin: 2 * 2P ~ 2 * 40P
High Light:

90 Degree Female Header Connector


Dual Row Female Header Connector


1.0 AMP Smt Header Connector




1.27 Dual Row 90 degree female header H=4.3/3.4, female to female header



female header is commonly used in a lot of applications, Scondar offers numerous options for this type of female header. Orientation can either be SMT or THM, single, dual or triple row. Scondar offers 2.54mm pitch female headers in either vertical or right-angle orientation. The pins and blades are also available in various sizes, counts, amperages, and plating.


Application: This connector is widely used in PCB circuit boards in electronics, electrical appliances, and instruments.

Function: Its function is to act as a bridge between blocked or isolated circuits in a circuit, and take on the task of current or signal transmission. Usually used in conjunction with the pin header to form a board-to-board connection; or used in conjunction with the electronic harness end to form a board-to-wire connection; can also be used independently for board-to-board connection.






Product Details:


Product name: DALEE  Female header connector
Secification:  1.27mm  Pitch
Type:   Double Row
Certification: ISO9001,UL,ROHS and the latest REACH
Current Rating: 1.0 AMP
Withstand Voltage : 500V AC/DC
Operating Temprature: -40 ℃ - +105 ℃
Insulation Resistance 1000M min
Contact Resistance : 20mΩ Max
Insulator Material: PA9T Black+30%GF UL94V-0 BK
Contact Plating: Au over Ni


 Product Name: female header connector


1. features: the use of a wide range of environmental protection fireproof antioxidant strong conductivity

2. material: PA9T/PBT/ brass or phosphor bronze; dielectric materials: plastic UL 94V-0

3. Product application: general are widely used in electronics, electrical appliances, instrument connection device mainly plays the role of a current or signal transmission. Usually with pin supporting the use, composition of board to board connection. Or with electronic wiring harness terminal supporting the use of, constitute the board of line connection.




Type of female terminal:


U terminal and Y terminal;

U-shaped terminal, there are three U-shaped terminals with general plastic height.

Y-type terminal, there are two Y-type terminals with general plastic height.



Product drawing :


1.27 Dual Row 90 Degree Female Header Connector 1.0 AMP 0




Payment term and delivery


1. MOQ:1000pcs.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

6. Delivery Time: 3-15 working days after order confirmed and the payment received.

7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.

8. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton



Dalee Electronic company is a high-tech company that integrates mold design, development, production, manufacturing, and sales as a professional connector manufacturer. Its main products are: board to board connectors, FFC / FPC flat connectors, SIM/TF/SD card holder, USB/HDMI/type-C socket, wafer connector, needle row mother, SATA and other precision connectors. our production process and raw materials are in line with the EU ROHS environmental protection directive requirements.
