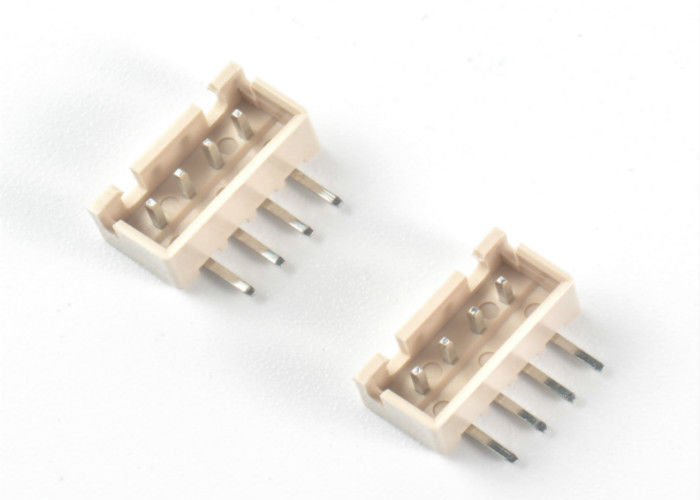

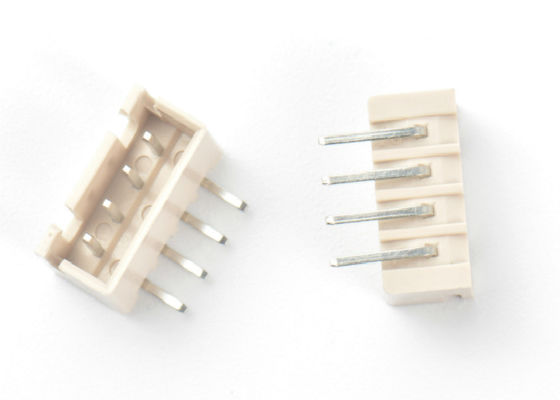

PCB Board 2.54mm Pitch 90° Dip Wafer Connector Phosphor Bronze

Pitch=2.54mm Dalee Wafer Connector /2-15 Pin DIP Header Wire To Board Connector

Pitch

The spacing of the conductors. The pitch typically refers to the distance from the center of one conductor to the center of its neighboring conductor. A single FFC can have different pitches between different conductors on the same cable, however this is uncommon. FFC cables are available in many pitches, such as 0.500 mm, 0.625 mm, 0.635 mm, 0.800 mm, 1.00 mm, 1.25 mm, 1.27 mm, 2.00 mm, 2.54 mm, but the most common pitches are 0.500 mm and 1.00 mm. Custom Pitch and Multiple Pitch FFC are available upon special request.

Type

Some cables (described as Type 1 by Würth Elektronik or Type A by Molex) have the exposed contacts on the same side at each end. Other cables (labelled Type 2 or Type D) have the exposed contacts on opposite sides of the cable (so that if the cable is lying flat, one end will have face-up contacts, and the other end will have face-down contacts).

Exposure length

The length of the electrical contact that has been exposed at the termination of the cable.

Stiffener

Most FFCs have some sort of extra material attached on the opposite side of the exposed length of the cable to facilitate ZIF or LIF connections.

Conductors size

The width and thickness of the conductors

Now the FFC Cables are widely used in a variety of printer connection between the head and the motherboard, plotters, scanners, copiers, stereos, LCD appliances, fax machines, DVD players and other products, a variety of signal transmission and plate board connections. In modern electrical equipment, FFC Cables can be found almost everywhere

Product Details:

Product Application: Our connectors  are widely applied to cummunications industry , cusumer electronics, military industry ,automotive filed, medical equipment , data module and so on .

Competitive Advantages:

1,10 year's experience in the electronic business

2,Strong R&D team specialized in connector and model design

3,Quality certification ,including ROHS,SGS,ISO9001 and UL certification

4,Strict shipping ,100% tested before delivery

5,Fast delivery,purchasing orders shipped in 3-10 days

6,Samples can be provided for free in 1-3 days

Dalee Main Export Markets : Asia,Africa,South and North America and Europe .

Payment term and delivery

1. MOQ:1000pcs.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

6. Delivery Time: 3-15 working days after order confirmed and the payment received.

7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.

8. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton.
