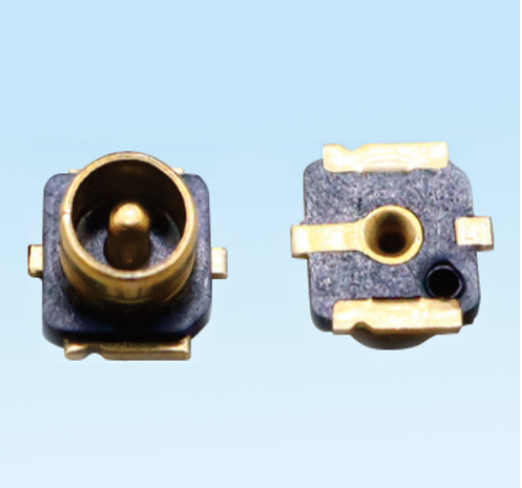

Third generation IPEX U.FL RF Coaxial Connector

Third generation IPEX U.FL RF Coaxial Connector
Third generation IPEX U.FL RF Coaxial Connector

Large Image :  Third generation IPEX U.FL RF Coaxial Connector

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: volume
Delivery Time: 5-10 working days
Payment Terms: T/T, L/C
Supply Ability: 5000K/month
Detailed Product Description
Product Name: IPEX U.FL RF Coaxial Connector Gender: Female
Competitors: I-PEX, HRS, Tyco Operating Temprature: -40℃ - +85 ℃
Applicable Frequency: DC~6 GHz Application: Water Dancing Speaker Dc Motor
Packaging: Tape & Reel (TR) Insulation Resistance: 500 MΩ Min

Third generation IPEX U.FL RF Coaxial Connector



Product Details:





Product name: DALEE RF Connector
Secification:  one generation
Type :

Female

Certification: ISO9001,UL,ROHS and the latest REACH
Voltage Rating: 60 VAC
Operating Temprature: -40℃ - +85 ℃
Nominal Characteristic Impedance: 50 ohm
Applicable Frequency: DC~6 GHz
Vspr: 1.3 MAX.(DC~3GHz). 1.5 MAX.(3~6GHz)
Contact plating : 1u’’/1.5u’’
Grounded plating: 50u’’ MIN.Nickel underplating
Application: Routers





Application:



This SMT type micro coaxial RF Rec .products are designed for mobile phones ,Wireless LAN ,Mini –PCI ,Bluetooth , PDA ,GPS ,electronic measuring instruments,etc.





Technology parameters :


Frequency Range: 0 - 6GHz

Impedance: 50Ω

Insulation Resistance: 500 MΩ Min

Dielectric Withstanding Voltage: 200V AC/1 Min

Inner Contact Resistance: 20 mΩ Max

Outer Contact Resistance: 10 mΩ Max

Voltage Standing wave Ratio(VSWR): 1.3 Max. ( 0 - 3GHz 1.2Max).

Mechanical Durability: 100 Cycles

Relative Humidity: 95% R.H.Max

Operating Temperature: -40℃~+85℃



Rating :

1, Initial Insulation Resistance : 500M ohm
2,Contact Resistance  :
  inner contact : 20 -25 milliohm Max.(Inial  )
  outer contact 10 -15 milliohm Max.(Inial  )
3, Withstand Voltage  : 200V AC 1 MIN
4, V.S.W.R:  : 1.3 Max (0-6GHz)




Payment term and delivery:



1. MOQ:1000pcs.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.





Dalee Connector Advantages:

1, One stop service of connectors with high quality and best service after sales .

2, Strong R&D team specialized in connector and model design.

3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification.

4, More than 10 year's experience in the electronic business.

5, Strict shipping ,100% tested before the delivery

6, we also can provide the customized products as the request of clients
