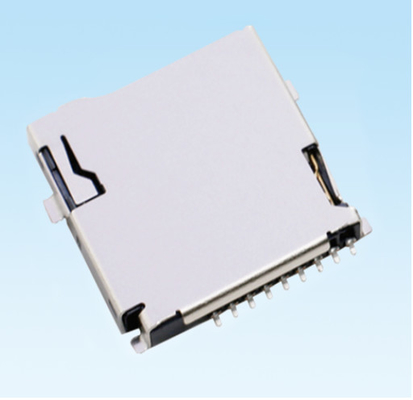

Micro SD TF Memory Card Connector 9 Pin H=1.85 SMT Push Type Ultrathin High Temp Resistance

Certification
China Dalee Electronic Co., Ltd. certification
China Dalee Electronic Co., Ltd. certification
We have cooperated with Dalee company about two years. They are professional with excellent quality and best service. Thank you very much.

—— Matthew Cornish

Better price and high quality, this helped me a lot. Timely booking, satisfactory service and full support. I am glad to work with you.

—— Daniel Reisfeld

Dalee company have provided kinds of connectors with high quality and timely delivery. I like them very much, and they have became our main connector supplier in China.

—— Mike Mcmaster

I'm Online Chat Now

Micro SD TF Memory Card Connector 9 Pin H=1.85 SMT Push Type Ultrathin High Temp Resistance

Micro SD TF Memory Card Connector 9 Pin H=1.85 SMT Push Type Ultrathin High Temp Resistance
Micro SD TF Memory Card Connector 9 Pin H=1.85 SMT Push Type Ultrathin High Temp Resistance

Large Image :  Micro SD TF Memory Card Connector 9 Pin H=1.85 SMT Push Type Ultrathin High Temp Resistance

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: Volume
Delivery Time: 5-10 working days
Payment Terms: T/T, L/C
Detailed Product Description
Product Family: Memory Card Connectors Application: PCB
Type: Push High: 1.45mm
PIN: 9p OP Temperature: -20° ~ +85°

Micro SD TF Memory Card Connector 9 Pin H=1.85 SMT Push Type Ultrathin High Temp Resistance





Micro SD TF Memory Card Connector 9 Pin H=1.85 SMT Push Type Ultrathin High Temp Resistance 0



Product Details:



Product name: DALEE Connector
Secification: 1.85mm High
Type: Push
Certification: ISO9001,UL,ROHS and the latest REACH
Contact Resistance: 60 Milliohms max
Insulation Resistance 1000 Megohms min
Voltage Rating: 50 V
Current Rating: 1.0A
Operating Temprature: -20 ℃ - +85 ℃
Durability: 500 cycles
Housing: Thermoplastic , UL94- V0





Product Application: Dalee connectors are widely applied tocummunications equipments, cusumer electronics, smart home, automotive filed, medical equipment , data module and so on .

3.65mm High  Pin=9 Push Type SIM Card Connector  Used in Communication Equipments





Dalee Main Export MarketsSouth and North America, Asia,Africa and Europe.





Competitive Advantages:



1, 10 year's experience in the electronic business

2, Strong R&D team specialized in connector and model design

3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification

4, Strict shipping ,100% tested before delivery

5, Fast delivery,purchasing orders shipped in 3-10 days

6, Samples can be provided for free in 1-3 days





Packaging & Shipping: Usually we ship your order by sea or by air;We'll tell you the tracking number once your order has been sent ;PaypalWe do our best to ship your order within 1 week after receiving your payment;We accept T/T Bank transfer, L/C, Western Union, Moneygram.
