Product Details:
Payment & Shipping Terms:
|
| Pitch: | 0.8mm | Pin: | 2-20 P |
|---|---|---|---|
| Insulation Resistance: | 500mΩ/MIN | Current Rating: | 1.0A |
| Withstand Voltage: | 250V AC/min | Operating Temprature: | -25℃ - +85 ℃ |
| High Light: | wire to board terminal,circuit board power connectors |
||

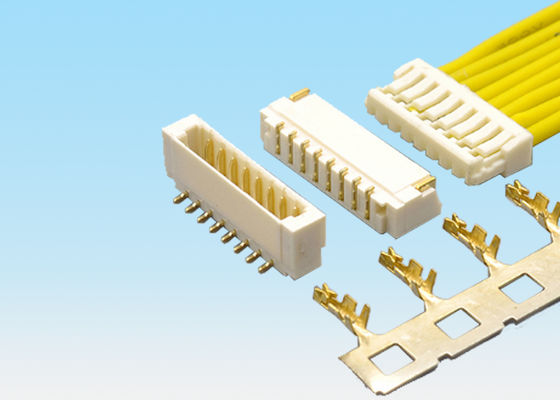

PCB SMD Wire To Board Connectors 0.8mm Pitch 2-20Pin Wafer Housing Terminal with Cusumer Electronic
Product details:
| Product name: | DALEE Wire to Wire Connector |
| Secification: | 0.8mm Pitch |
| Type : | Wire To Wire |
| Certification: | ISO9001,UL,ROHS and the latest REACH |
| Gender: | Male & Female |
| Rated voltage: | 50V AC,DC |
| Contact Resistance: | 20mΩ MAX |
| Current Rating: | 1.0A |
| Withstand Voltage: | 250V AC/min |
| Insulation Resistance: | 500mΩ/MIN |
| Operating Temprature: | -25℃ - +85 ℃ |
| Application: | automotive filed |
Material Specification:
1) Receptacle Housing: UL94 V-O.
2) Plug Housing: UL94 V-0.
3) Terminal : phosphor Bronze,Tin Plated
Product Funcation:
1) Dalee connectors can provides SMT, compression or surface installation compatibility models, and providing design flexibility;
2) The terminal which is isolated completely can prevent damage to the terminal during processing and interpolation;
3) We also can provide different choices for customers to meet vide options to meet multiple application needs；
4) The terminal adopts a centralized node approach and has a high degree of contact reliability;
5) Our connectors can offer joint retention and stress removal options.
Dalee Main Export Markets : Asia,Africa,South and North America and Europe.
Product Application: Dalee connectors are widely applied to lots of industries, such as cummunications industry ,action camera manual mini sport DV, military industry ,unmanned aerial vehicle, rear DVR video recorder ,computer peripheral products ,cusumer electronics, automotive filed, medical equipment and so on .
Competitive Advantages: we can provide diversified products including wire to wire connector,wire to board connector ,Board to Board conncetor and so on , More than 10 year's experience in the electronic business; fast delivery,purchasing orders shipped in 3-10 days; Quality certification ,including ROHS,SGS,ISO9001 and UL certification; Strong R&D team specialized in connector and model design; Strict shipping ,100% tested before the delivery .
Payment term and delivery:
1. MOQ:1000pcs.
2. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.
3. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs
4. Delivery Time: 3-15 working days after order confirmed and the payment received.
5. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton.
