Professional Connector Manufacturer
Product Details:
Payment & Shipping Terms:
|
| Pitch: | 1.5mm | Type: | Single Row |
|---|---|---|---|
| Pin: | 2-15 P | Insulation Resistance: | 500mΩ/MIN |
| Contact Resistance: | 20mΩ MAX | Application: | Display |
| High Light: | wire to board terminal,circuit board power connectors |
||

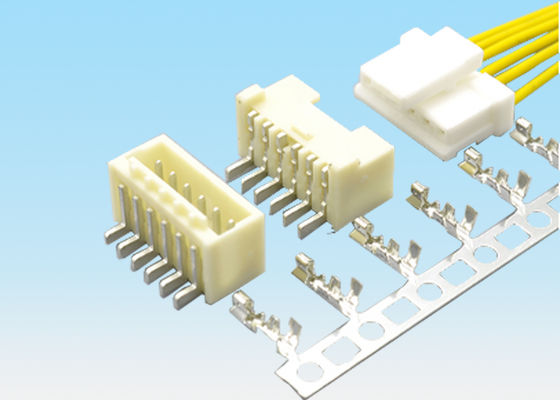

1.5mm Pitch Single Row SMT type Dalee board to wire connectors 2-15 Pin for Led TV / display
Product details:
| Product name: | DALEE Wire to Wire Connector |
| Secification: | 1.5mm Pitch |
| Type : | Wire To Board |
| Certification: | ISO9001,UL,ROHS and the latest REACH |
| Pin: | 2-15 Pin |
| Rated voltage: | 50V AC,DC |
| Contact Resistance: | 20mΩ MAX |
| Current Rating: | 1.0A |
| Withstand Voltage: | 250V AC/min |
| Insulation Resistance: | 500mΩ/MIN |
| Operating Temprature: | -25℃ - +85 ℃ |
| Application: | Printer and set-top box |
Material Specification:
1) Receptacle Housing: UL94 V-O.
2) Plug Housing: UL94 V-0.
3) Terminal : phosphor Bronze,Tin Plated
Product Funcation:
1) Dalee connectors can provides SMT, compression or surface installation compatibility models, and providing design flexibility;
2) The terminal which is isolated completely can prevent damage to the terminal during processing and interpolation；
3) Dalee connectors can reduce the short circuit of debris to the maximum;
4) Dalee connector can prevent mismatches and facilitate plugging.
5) Dalee connector ensures that the plug-in is strong and saves extra space.
Dalee Main Export Markets : Asia,Africa,South and North America and Europe.
Product Application: Dalee connectors are widely applied to lots of industries, such as military industry , cusumer electronics, unmanned aerial vehicle,automotive filed, computer peripheral products , rear DVR video recorder , medical equipment , cummunications industry ,action camera manual mini sport DV and so on .
Competitive Advantages:
1,One stop service of connectors with high quality and best service after sales;
2, Dalee company have the strong R&D team specialized in connector and model design including ROHS,SGS,ISO9001 and UL certification;
3, we can provide diversified products including wire to wire connector,wire to board connector ,Board to Board conncetor and so on ;
4, Quality certification ,Strict shipping ,100% tested before the delivery;
5, we also can provide the customized products as the request of clients.
Payment term and delivery:
1. Payment term: 100% T/T in advance before production.
2. Payment way: T/T, Paypal , Western Union or others method.
3. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.
4. Trade Terms: FOB Shenzhen , EXW or DDU.
5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.
