Payment & Shipping Terms:
|Type:||90° DIP||Fire Protection Grade:||UL94V-0|
|Operating Temp:||25 ° C-105 ° C||Application:||Household Appliances|
|Gender:||Male Pin Header||Samples:||Free|
pcb header connector,
surface mount pin header

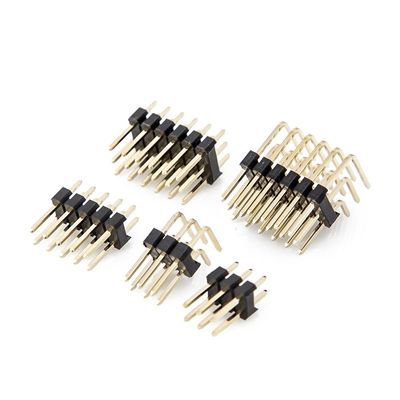

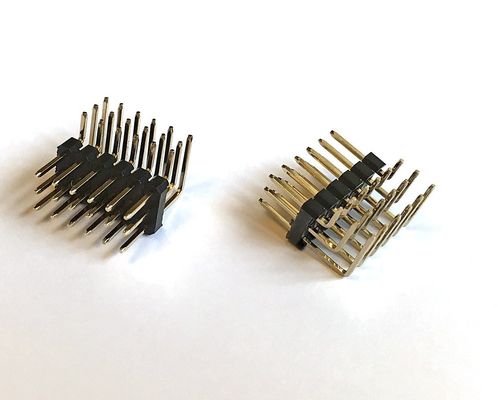

Pin header socket looper Single Plastic Dual row 90° DIP 2.0mm Board to Board Planar Mating
We offer through hole and surface mount connectors, with options for single and double row parts,
with pitch spacing: 1.00mm (.039”), 2.0mm (0.0782) and 2.54mm (0.050”). also can provide as your requirements ,
If you do not see the solution,welcome to give us a call .
|Product name:||DALEE connector|
|Certification:||ISO9001,UL,ROHS and the latest REACH|
|Current Rating:||1.0 AMP|
|Withstand Voltage :||500 V AC/DC|
|Operating Temprature:||-40 ℃ - +105 ℃|
|Insulation Resistance||1000M min|
|Contact Resistance:||30m max|
|Contact material:||Copper Alloy|
|Contact Plating :||Gold or Tin or Ni|
1, 10 year's experience in the electronic business
2, Strict shipping ,100% tested before delivery
3, Strong R&D team specialized in connector and model design
4, Quality certification ,including ROHS,SGS,ISO9001 and UL certification
5, Samples can be provided for free in 1-3 days
6, Fast delivery,purchasing orders shipped in 3-10 days
|Payment term and delivery :|
2. Trade Terms: FOB Shenzhen or EXW.
3. Payment term: 100% T/T in advance before production.
4. Payment way: T/T, Paypal , Western Union or others method.
5. Samples: is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.
6. Delivery Time: 3-15 working days after order confirmed and the payment received.
7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.
8. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton.
|scope of application :|
|pin are widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard,a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone,program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc.|
Dalee Electronic company is a high-tech company that integrates mold design, development, production, manufacturing, and sales as a professional connector manufacturer. Its main products are: board to board connectors, FFC / FPC flat connectors, SIM/TF/SD card holder, USB/HDMI/type-C socket, wafer connector, needle row mother, SATA and other precision connectors. our production process and raw materials are in line with the EU ROHS environmental protection directive requirements.
Contact Person: Ms. Vickey Chou
