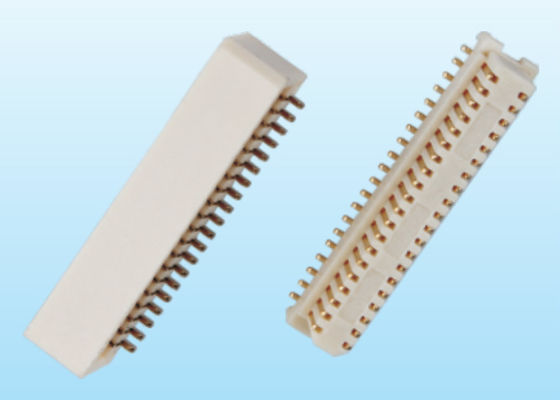

Side Contact Female Type Board To Board Connector 0.5Pitch-5.0mm Total High UL94V-0 Housing

Side Contact Female Type Board To Board Connector 0.5Pitch-5.0mm Total High UL94V-0 Housing
Side Contact Female Type Board To Board Connector 0.5Pitch-5.0mm Total High UL94V-0 Housing

Large Image :  Side Contact Female Type Board To Board Connector 0.5Pitch-5.0mm Total High UL94V-0 Housing

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: DL50010111

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: Loose in bag or box, Tray, Tube
Delivery Time: 3-10 working days
Payment Terms: T/T, L/C
Supply Ability: 1000K/month
Detailed Product Description
Product Family: Board To Board Connector Product Status: Active
Type: Single Slots Gender: Female
PCB Mount Type: Surface Mount Electrical Rating: AC/DC
Insulation Resistance: 500M Ω OP Temperature: -25° ~ +85°
High Light:

board to board power connectors

,

board to board header connector

0.8mm Pitch Total High=5.0mm Side Contact Female Type Board To Board Connector PIN 10-100





Product Description :



Product name: DALEE connector
Secification: 0.5mm Pitch-5.0mm Total High
Type: Side Contact
Certification: ISO9001,UL,ROHS and the latest REACH
Operating voltage: 10V AC(RMS)/DC
Withstand Volt : 200 V AC/minute
Operating Temprature: -25 ℃ - +80 ℃
Insulation Resistance 500M ohms min. at 250VDC
Dielectric withstandig voltae: 500VAC/1minute
Contact Resistance: 1000m ohms max
Contact material: Phosphor bronze/gold plated
Housing: LCP, UL94V-0, white





DRAWING



Side Contact Female Type Board To Board Connector 0.5Pitch-5.0mm Total High UL94V-0 Housing 0





Competitive Advantages:



1, 11 year's experience in the electronic business

2, Strong R&D team specialized in connector and model design

3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification

4, Strict shipping ,100% tested before delivery

5, Fast delivery,purchasing orders shipped in 3-10 days

6, Samples can be provided for free in 1-3 days





Product Application:



1, Cusumer Electronics.

2, Communications Industry.

3, Medical Equipment.

4, Automotive Filed

5, Military Industry

6, Data Module





Payment term and delivery



1. MOQ:1000pcs.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

6. Delivery Time: 3-15 working days after order confirmed and the payment received.

7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.

8. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton
