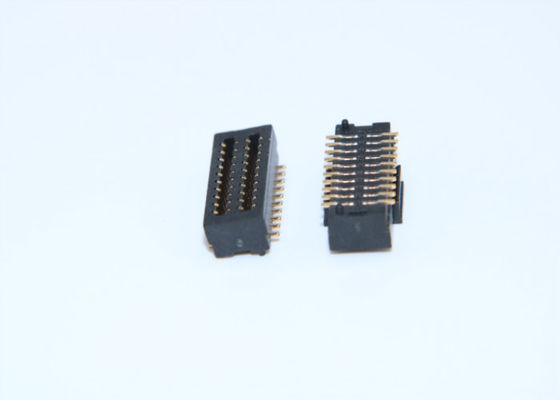

0.8mm Pitch Board To Board Power Connectors Female Type 5001-BTB0830-20F

0.8mm Pitch Board To Board Power Connectors Female Type 5001-BTB0830-20F
0.8mm Pitch Board To Board Power Connectors Female Type 5001-BTB0830-20F

Large Image :  0.8mm Pitch Board To Board Power Connectors Female Type 5001-BTB0830-20F

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: 5001-BTB0830-20F

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: Loose in bag or box, Tray, Tube
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C, Western Union,paypal
Supply Ability: 1000K/month
Detailed Product Description
Product Name: High Speed Board To Board Connector Part Number: 5001-BTB0830-20F
Connector Type: Assembly Connector Electrical Rating: AC/DC
Application: Smart Home Equipment Plating: Gold Plating
Pins: 2*10 P Gender: Female
High Light:

board to board power connectors


board to board header connector



Female type 5001-BTB0830-20F  BTB Connector with double row contact , 0.8mm pitch 3.0mm H 2*10 pins


Board-to-Board Connectors, which feature a large floating range to facilitate assembly and a small pitch. These connectors are ideal for a wide range of applications in the automotive, industrial and consumer markets.


Provides maximum space savings: Advanced Driver-Assistance Systems (ADASs) continue to shrink in size, therefore creating the need for a more compact connector. Board-to-Board Connectors were developed in response to the automotive camera market's need for more compact applications.


Automatic Assembly: A generous floating range facilitates blind mating and board-to-board connections, eliminating the need for high-cost FPC to connect PCBs. As a result, the Connectors deliver both design flexibility and lower component costs.


Higher-Temperature Operation: Having the ability to withstand higher operating temperatures allow FSB5 Series Connectors to be used in high-performance products. Increasing product densities and performance needs demand high operating temperatures, however many B-to-B connectors are only capable to withstand operating temperatures of a 105°C. B-to-B Floating FSB5 Series Connectors can operate at up to 125°C.




Product Application:


1, electrical equipment .

2, Communications Industry.

3, Security Equipment.

4, Automotive Filed

5, Network Communications

6, Measuring Instruments


Product Description :


Product name: DALEE BTB connector
Secification: 0.8mm Pitch
part number:

 5001-BTB0830- 20F

Certification: ISO9001,UL,ROHS and the latest REACH
Operating voltage: 10V AC(RMS)/DC
Withstand Volt : 200 V AC/minute
Operating Temprature: -25 ℃ - +80 ℃
Insulation Resistance 500M ohms min. at 250VDC
Dielectric withstandig voltae: 500VAC/1minute
Contact Resistance: 1000m ohms max
Contact material: Phosphor bronze/gold plated
Housing: LCP, UL94V-0, white




Competitive Advantages:


1, 11 year's experience in the electronic business

2, Strong R&D team specialized in connector and model design

3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification

4, Strict shipping ,100% tested before delivery

5, Fast delivery,purchasing orders shipped in 3-10 days

6, Samples can be provided for free in 1-3 days





Payment term and delivery


1. Delivery Time: 3-15 working days after order confirmed and the payment received.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

6. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton

7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.






1. We can shipping all over the world by DHL , UPS , FedEx and EMS . The packaging is very safe and strong.

     If you have any special needs please notify me.

2. It will take around 3-5 days to reach your hands.




Product Type & Condition :


Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated .                                               So,please consult the stock situation when you inquire.



Warranty & Guarantee : All components we sell the quality with 30 days Return policy from the day of shipment.
