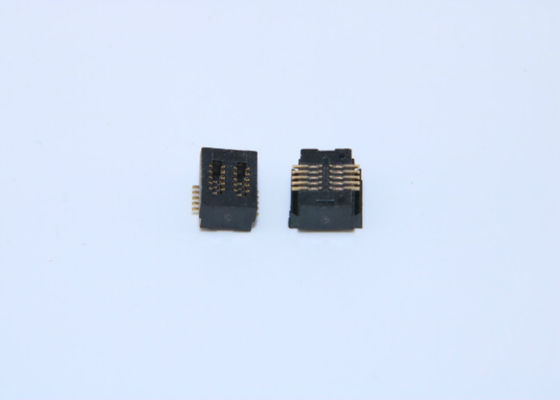

2*5 Pins Board To Board Connector 3.0mm Height Female Type With Double Row Contac

2*5 Pins Board To Board Connector 3.0mm Height Female Type With Double Row Contac
2*5 Pins Board To Board Connector 3.0mm Height Female Type With Double Row Contac

Large Image :  2*5 Pins Board To Board Connector 3.0mm Height Female Type With Double Row Contac

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: 5001-BTB0530-10F

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: Loose in bag or box, Tray, Tube
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C, Western Union,paypal
Supply Ability: 1000K/month
Detailed Product Description
Product Name: Connector Board To Board Gender: Female
Connector Type: Assembly Connector Part Number: 5001-BTB0530-10F
Electrical Rating: AC/DC Insulation Resistance: 500M Ω
High Light:

board to board power connectors

,

board to board header connector



Board To Board Connector with double row contact ,0.5mm pitch 2.0mm 2*50 pins 5001-BTB0520-100M



WHAT ARE BOARD TO BOARD CONNECTORS?



• Board-to-board (B2B) connectors as the name indicates are used for connecting circuits boards together.

• Board to board connectors consist of two connectible parts.

• One part, which typically has pins, attaches to one PCB while the part with receptacles is mounted to another PCB.

• The circuit boards are then connected by mating to two parts of the connector.





Competitive Advantages:



1, 11 year's experience in the electronic business

2, Strong R&D team specialized in connector and model design

3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification

4, Strict shipping ,100% tested before delivery

5, Fast delivery,purchasing orders shipped in 3-10 days

6, Samples can be provided for free in 1-3 days





Product Application:



1, electrical equipment .

2, Communications Industry.

3, Security Equipment.

4, Automotive Filed

5, Network Communications

6, Measuring Instruments



Product Description :



Product name: DALEE BTB connector
Secification: 0.5mm Pitch
part number:  5001-BTB0530- 10F
Certification: ISO9001,UL,ROHS and the latest REACH
Operating voltage: 10V AC(RMS)/DC
Withstand Volt : 200 V AC/minute
Operating Temprature: -25 ℃ - +80 ℃
Insulation Resistance 500M ohms min. at 250VDC
Dielectric withstandig voltae: 500VAC/1minute
Contact Resistance: 1000m ohms max
Contact material: Phosphor bronze/gold plated
Housing: LCP, UL94V-0, white













Payment term and delivery



1. Delivery Time: 3-15 working days after order confirmed and the payment received.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

6. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton

7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.
