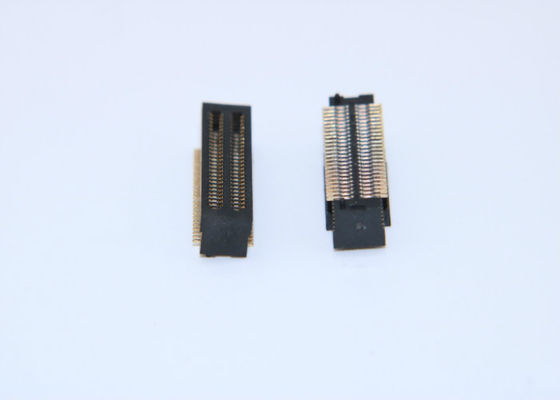

4.0mm H 2*25 Pins 0.5 MM Pitch Connector , Female Pcb Board Connectors 5001-BTB0540-50F

4.0mm H 2*25  Pins 0.5 MM Pitch Connector , Female Pcb Board Connectors 5001-BTB0540-50F
4.0mm H 2*25  Pins 0.5 MM Pitch Connector , Female Pcb Board Connectors 5001-BTB0540-50F

Large Image :  4.0mm H 2*25 Pins 0.5 MM Pitch Connector , Female Pcb Board Connectors 5001-BTB0540-50F

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: 5001-BTB0540-50F

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: Loose in bag or box, Tray, Tube
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C, Western Union,paypal
Supply Ability: 1000K/month
Detailed Product Description
Product Name: Circuit Board Connectors Part Number: 5001-BTB0540-50F
Insulation Resistance: 500M Ω Application: Smart Home Equipment
Color: Black Plating: Gold Plating
High Light:

board to board power connectors

,

board to board header connector



BTB Connector with double row contact , Female type 5001-BTB0540-50F 0.5mm pitch 4.0mm H 2*25 pins





Application:

Automotive

  • Audio
  • Cameras
  • Car column switch
  • Comfort
  • Infotainment systems
  • LiDAR
  • Navigation devices
  • Radar sensors



Consumer

  • Digital camera
  • Flat-panel TVs
  • Gaming equipment
  • Home Security
  • Home entertainment systems
  • Smart speaker
  • UAVs/Drones
  • VR/AR



Data Center Solutions

  • Servers
  • Storage



Product Description :



Product name: DALEE BTB connector
Secification: 0.5mm Pitch
part number:

 5001-BTB0540- 50F

Certification: ISO9001,UL,ROHS and the latest REACH
Operating voltage: 10V AC(RMS)/DC
Withstand Volt : 200 V AC/minute
Operating Temprature: -25 ℃ - +80 ℃
Insulation Resistance 500M ohms min. at 250VDC
Dielectric withstandig voltae: 500VAC/1minute
Contact Resistance: 1000m ohms max
Contact material: Phosphor bronze/gold plated
Housing: LCP, UL94V-0, white













Shipping:



1. We can shipping all over the world by DHL , UPS , FedEx and EMS . The packaging is very safe and strong.

     If you have any special needs please notify me.

2. It will take around 3-5 days to reach your hands.







Product Type & Condition :



Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated .                                               So,please consult the stock situation when you inquire.





Warranty & Guarantee : All components we sell the quality with 30 days Return policy from the day of shipment.
