Double Row Contact Board To Board Connector Male Type 5001-BTB0540-10M 0.5mm Pitch 4.0mm

Certification
China Dalee Electronic Co., Ltd. certification
China Dalee Electronic Co., Ltd. certification
We have cooperated with Dalee company about two years. They are professional with excellent quality and best service. Thank you very much.

—— Matthew Cornish

Better price and high quality, this helped me a lot. Timely booking, satisfactory service and full support. I am glad to work with you.

—— Daniel Reisfeld

Dalee company have provided kinds of connectors with high quality and timely delivery. I like them very much, and they have became our main connector supplier in China.

—— Mike Mcmaster

I'm Online Chat Now

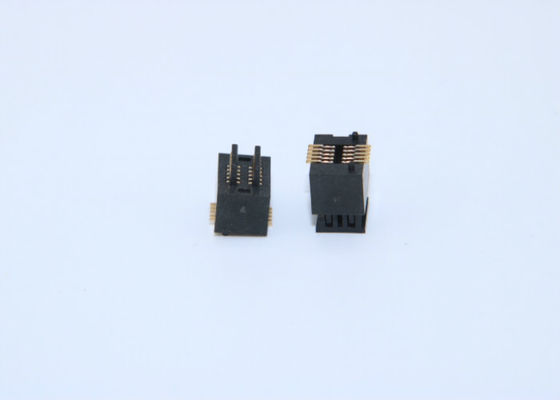

Double Row Contact Board To Board Connector Male Type 5001-BTB0540-10M 0.5mm Pitch 4.0mm

Double Row Contact Board To Board Connector Male Type 5001-BTB0540-10M 0.5mm Pitch 4.0mm
Double Row Contact Board To Board Connector Male Type 5001-BTB0540-10M 0.5mm Pitch 4.0mm

Large Image :  Double Row Contact Board To Board Connector Male Type 5001-BTB0540-10M 0.5mm Pitch 4.0mm

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: 5001-BTB0540-10M

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: Loose in bag or box, Tray, Tube
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C, Western Union,paypal
Supply Ability: 1000K/month
Detailed Product Description
Product Name: Pcb Board To Board Connectors Gender: Male
Connector Type: Assembly Connector Part Number: 5001-BTB0540-10M
Electrical Rating: AC/DC Insulation Resistance: 500M Ω
High Light:

board to board power connectors

,

board to board header connector



BTB Connector with double row contact , Male type 5001-BTB0540-10M 0.5mm pitch 4.0mm H 2*5 pins





Features:



Wide alignment guides

Allows for easy mating



Dual contact design

Provides electrical and mechanical reliability



Floating

Improve assembly operability



Small body and low profile

Space saving and high PWB design flexibility



Metal covers available

Prevents housing damage during mating



Contact locks

Provides and audible "click" to ensure a secure mating



Wide variety of height and circuit variations

Provides flexibility including printed wiring board (PWB) applications



Power supply for mobile applications

Up to 10.0A



Product Description :



Product name: DALEE BTB connector
Secification: 0.5mm Pitch
part number:

 5001-BTB0540- 10M

Certification: ISO9001,UL,ROHS and the latest REACH
Operating voltage: 10V AC(RMS)/DC
Withstand Volt : 200 V AC/minute
Operating Temprature: -25 ℃ - +80 ℃
Insulation Resistance 500M ohms min. at 250VDC
Dielectric withstandig voltae: 500VAC/1minute
Contact Resistance: 1000m ohms max
Contact material: Phosphor bronze/gold plated
Housing: LCP, UL94V-0, white







Competitive Advantages:



1, 11 year's experience in the electronic business

2, Strong R&D team specialized in connector and model design

3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification

4, Strict shipping ,100% tested before delivery

5, Fast delivery,purchasing orders shipped in 3-10 days

6, Samples can be provided for free in 1-3 days





Product Application:



1, electrical equipment  .

2, Communications Industry.

3, Security Equipment.

4, Automotive Filed

5, Network Communications

6, Measuring Instruments





Payment term and delivery



1. Delivery Time: 3-15 working days after order confirmed and the payment received.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

6. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton

7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.
