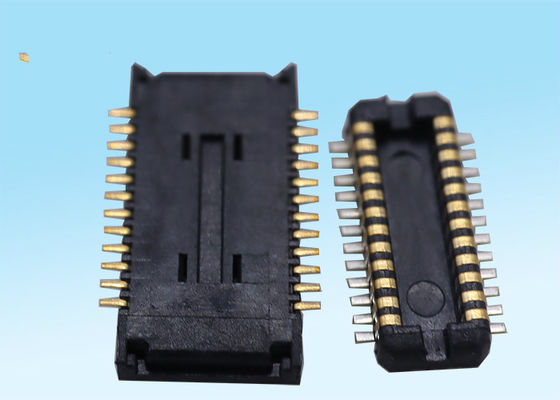

High Speed Board To Board Connector 0.4mm Pitch DF30FC-24DS-0.4V/ DF30FC-24DP-0.4V

High Speed Board To Board Connector 0.4mm Pitch DF30FC-24DS-0.4V/ DF30FC-24DP-0.4V
High Speed Board To Board Connector 0.4mm Pitch DF30FC-24DS-0.4V/ DF30FC-24DP-0.4V

Large Image :  High Speed Board To Board Connector 0.4mm Pitch DF30FC-24DS-0.4V/ DF30FC-24DP-0.4V

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: DL50010119

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: Loose in bag or box, Tray, Tube
Delivery Time: 5-15 working days
Payment Terms: T/T, L/C
Supply Ability: 1000K/month
Detailed Product Description
Type: DF BTB Connector Operating Humidity Rang: 20%~95%
Part Number: DF30FC-24DS-0.4V/ DF30FC-24DP-0.4V Current Rating: 0.3A
Storage Temperature Range: -25℃ To 85℃ Insulation Resistance: 500M Ω
Application: PCB Board
High Light:

btb connector

,

board to board power connectors

DF30FC-24DS-0.4V/ DF30FC-24DP-0.4V 0.4 mm pitch board to board connector H=1.0 mm





Product Description :



Product name: DALEE connector
Secification: 0.4mm Pitch
part number: DF30FC-24DS-0.4V/ DF30FC-24DP-0.4V
Certification: ISO9001,UL,ROHS and the latest REACH
Operating voltage: 10V AC(RMS)/DC
Withstand Volt : 200 V AC/minute
Operating Temprature: -25 ℃ - +80 ℃
Insulation Resistance 500M ohms min. at 250VDC
Dielectric withstandig voltae: 500VAC/1minute
Contact Resistance: 1000m ohms max
Contact material: Phosphor bronze/gold plated
Housing: LCP, UL94V-0, white







Performance:



1, Termination resistanc(Low Level): 50mΩ Max Initial / 90mΩ Max. Final

2, Dielectric withstanding Voltage: No creeping discharge or flash over shall occur, Current leakage: 1 mA Max.

3, Insulation Resistance: Insulation Resistance

4, Resistance to Reflow Solder Heat:No loose contacts or deformation.







Competitive Advantages:



1, 11 year's experience in the electronic business

2, Strong R&D team specialized in connector and model design

3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification

4, Strict shipping ,100% tested before delivery

5, Fast delivery,purchasing orders shipped in 3-10 days

6, Samples can be provided for free in 1-3 days







Product Application:



1, display .

2, Communications Industry.

3, Security Equipment.

4, Automotive Filed

5, Network Communications

6, Measuring Instruments







Payment term and delivery



1. Delivery Time: 3-15 working days after order confirmed and the payment received.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

6. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton

7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.
