Product Details:
Payment & Shipping Terms:
|
| Pin: | 10P,20P,24P,30P,34P,40P,50P.60P | Type: | Female |
|---|---|---|---|
| Part Number: | AXT624124/BTB410-M40203-SX | Storage Humidity Range: | 30%~70% |
| Storage Temperature Range: | -25℃ To 85℃ | Insulation Resistance: | 500M Ω |
| Application: | Electronic Products | ||
| High Light: | btb connector,board to board header connector |
||

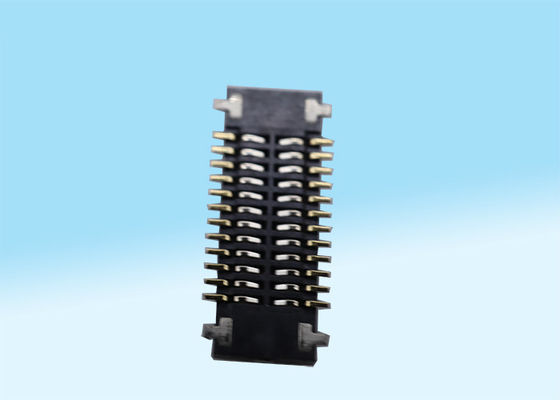

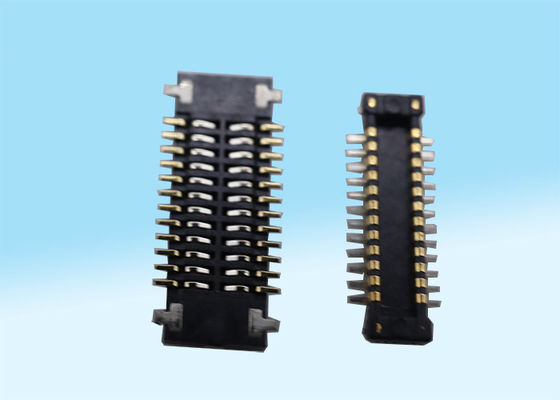

AXT524124/BTB410-F24203-SX /BF040-I24B-C10-W board to board smt connector for automobile electronic
Product Description :
| Product name: | board to board connector |
| Secification: | 0.4mm Pitch |
| part number: | AXT524124/BTB410-F24203-SX /BF040-I24B-C10-W |
| Certification: | ISO9001,UL,ROHS and the latest REACH |
| Operating voltage: | 10V AC(RMS)/DC |
| Withstand Volt : | 200 V AC/minute |
| Operating Temprature: | -25 ℃ - +80 ℃ |
| Insulation Resistance | 500M ohms min. at 250VDC |
| Dielectric withstandig voltae: | 500VAC/1minute |
| Contact Resistance: | 1000m ohms max |
| Contact material: | Phosphor bronze/gold plated |
| Housing: | LCP, UL94V-0, white |
Performance:
1, Termination resistanc(Low Level): 50mΩ Max Initial / 90mΩ Max. Final
2, Dielectric withstanding Voltage: No creeping discharge or flash over shall occur, Current leakage: 1 mA Max.
3, Insulation Resistance: Insulation Resistance
4, Resistance to Reflow Solder Heat:No loose contacts or deformation.
Competitive Advantages:
1, 11 year's experience in the electronic business
2, Strong R&D team specialized in connector and model design
3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification
4, Strict quality ,100% tested before delivery
5, Fast delivery,purchasing orders shipped in 3-10 days
6, Samples can be provided for free in 1-3 days
Product Application:
1, display .
2, Communications Industry.
3, Security Equipment.
4, Automotive Filed
5, Network Communications
6, Measuring Instruments
7,Medical equipment .
8,Automobile electronic .
Payment term and delivery
1. Delivery Time: 3-15 working days after order confirmed and the payment received.
2. Trade Terms: FOB Shenzhen , EXW,DDU.
3. Payment term: 100% T/T in advance before production.
4. Payment way: L/C, T/T, Paypal , Western Union or others method.
5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.
6. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton
7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.
