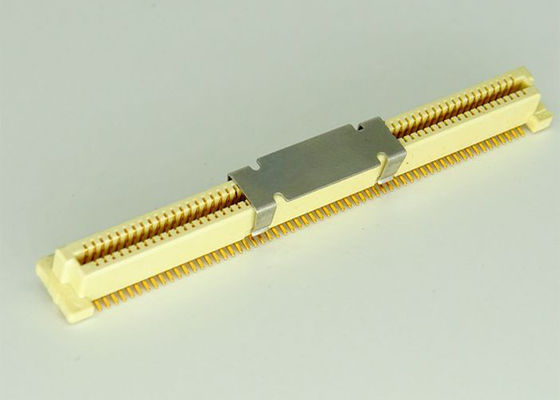

0.8mm Pitch Board To Board Connector Female Header H3.7mm AC/DC Electrical Rating

0.8mm Pitch Board To Board Connector Female Header H3.7mm AC/DC Electrical Rating
0.8mm Pitch Board To Board Connector Female Header H3.7mm AC/DC Electrical Rating 0.8mm Pitch Board To Board Connector Female Header H3.7mm AC/DC Electrical Rating 0.8mm Pitch Board To Board Connector Female Header H3.7mm AC/DC Electrical Rating

Large Image :  0.8mm Pitch Board To Board Connector Female Header H3.7mm AC/DC Electrical Rating

Product Details:

Place of Origin: Guangdong,China(Mainland)
Brand Name: DALEE
Certification: ROHS ,SGS, ISO9001
Model Number: DL50010135

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Packaging Details: Loose in bag or box, Tray, Tube
Delivery Time: 5-15 working days
Payment Terms: T/T, L/C, Western Union,paypal
Supply Ability: 1000K/month
Detailed Product Description
Product Name: BTB Connector Gender: Female
Contact Material: Phosphor Bronze Application: Printed Circuits Board
Plating: Gold Plating Pins: 20-120 Pins
High Light:

board to board power connectors

,

board to board header connector

0.8mm Pitch BTB Connector,40pin 60pin 120pin ,Female Header H3.7mm board to board connector





Dalee offers a wide variety of Board-to-Board Connectors for microminiature, high-speed, high-density, and high-power applications, such as stacking, mezzanine, coplanar, orthogonal and PCB connectors



The connector design is hard-metric, easy-mating, robust, surface-mounted and features high circuit density, with excellent electrical performance. Along with that, it comes in a range of stacking heights for optimizing system function. The connectors are available in tubes or embossed-tape packaging for automatic pick-and-place capability.





Product Description :



Product name: DALEE connector
Secification: 0.8mm Pitch
part number:  BTB connector
Certification: ISO9001,UL,ROHS and the latest REACH
Operating voltage: 10V AC(RMS)/DC
Withstand Volt : 200 V AC/minute
Operating Temprature: -25 ℃ - +80 ℃
Insulation Resistance 500M ohms min. at 250VDC
Dielectric withstandig voltae: 500VAC/1minute
Contact Resistance: 1000m ohms max
Contact material: Phosphor bronze/gold plated
Housing: LCP, UL94V-0, white



Feature:

1. Multiple stack heights 8.00 to 15.00mm
2. Offers design flexibility

3. Low mating forces
4. Less stress on PCB and solder joints

5. LCP housing
6. RoHS compliant

7. Leaf-style contact design
8. Terminal protected during mating and handling

9. Select 30u" Gold plating on contact
10. High reliability with 100-cycle durability rating

11. Anti-flux intrusion feature
12. Compatible with no-wash soldering processes





Competitive Advantages:



1, 11 year's experience in the electronic business

2, Strong R&D team specialized in connector and model design

3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification

4, Strict shipping ,100% tested before delivery

5, Fast delivery,purchasing orders shipped in 3-10 days

6, Samples can be provided for free in 1-3 days





Product Application:



1, electrical equipment  .

2, Communications Industry.

3, Security Equipment.

4, Automotive Filed

5, Network Communications

6, Measuring Instruments

7.automobile electronics





Payment term and delivery



1. Delivery Time: 3-15 working days after order confirmed and the payment received.

2. Trade Terms: FOB Shenzhen or EXW.

3. Payment term: 100% T/T in advance before production.

4. Payment way: T/T, Paypal , Western Union or others method.

5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.

6. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton

7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.
